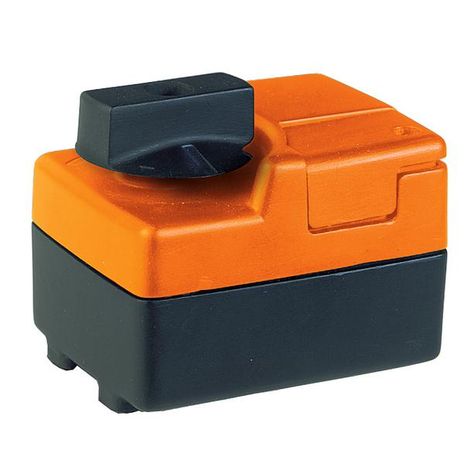

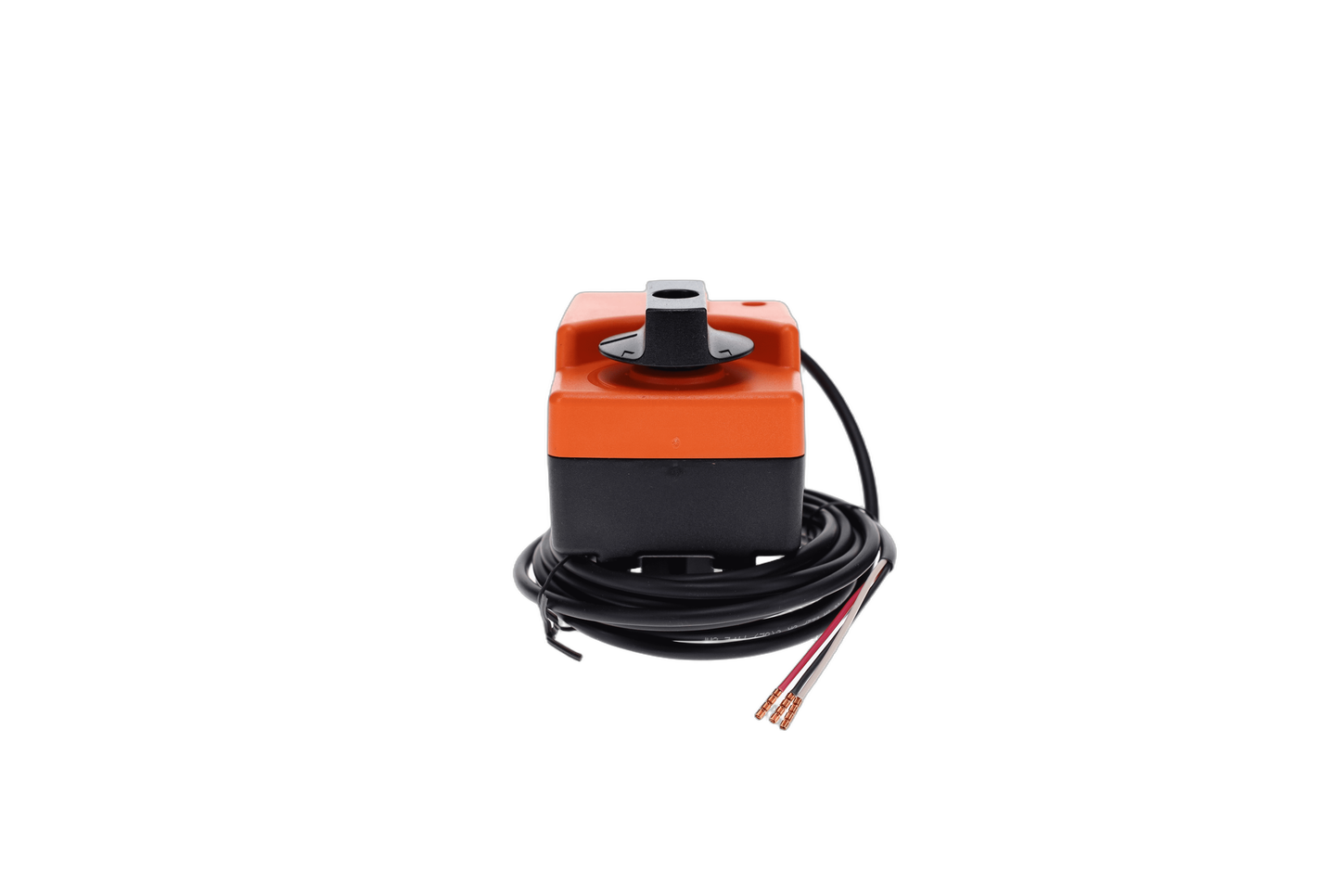

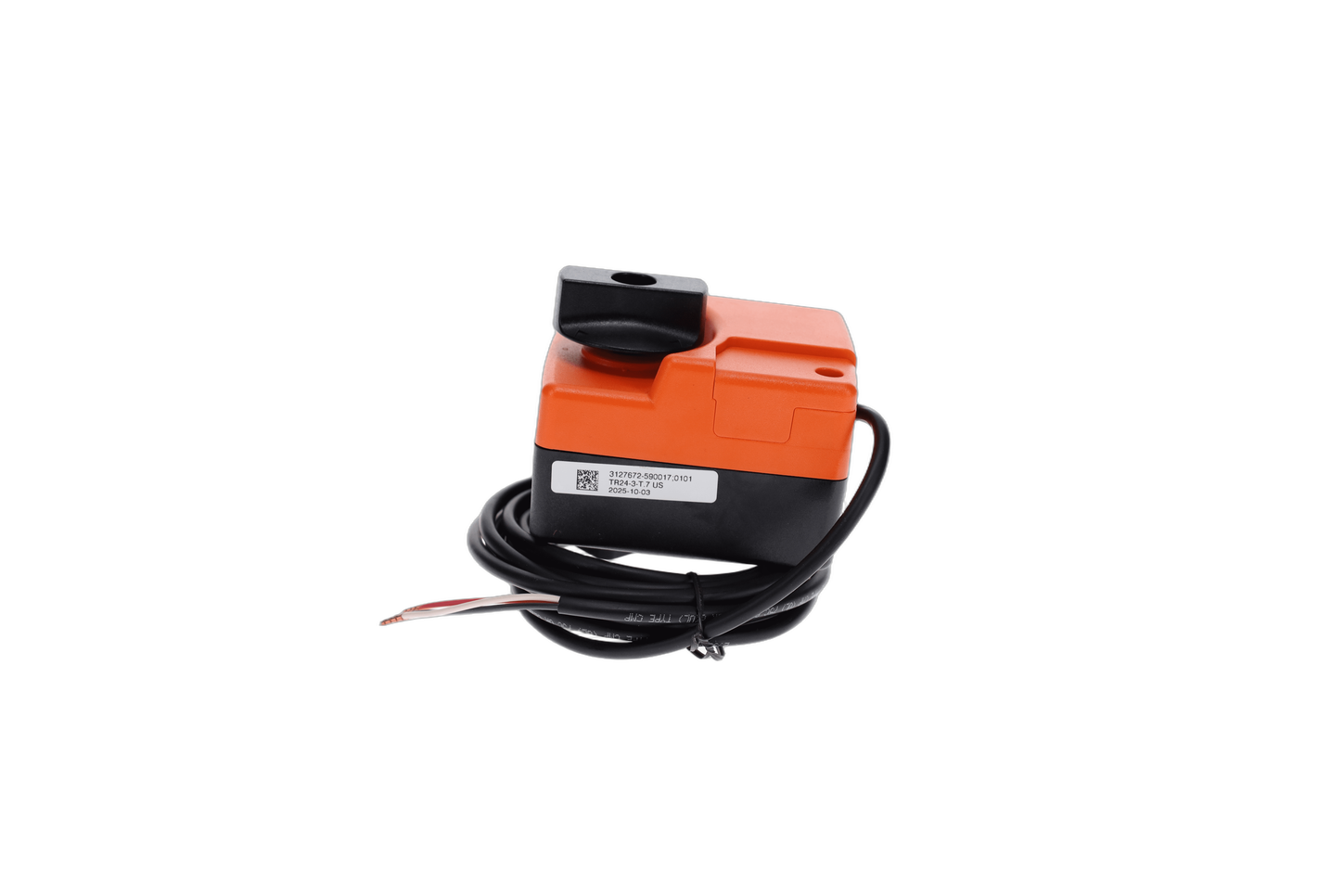

Belimo TR24-3/300 US

Name: Belimo TR24-3/300 US
Brand: Belimo
SKU: CS430881
Price: 128.70 USD
Availability: InStock

SKU: CS430881MPN: TR24-3/300 US

Valve Actuator, Non fail-safe, AC 24 V, On/Off

$128.70

Unit

4 in stock

Quantity

remove

add

Documents

Valve Actuator, Non fail-safe, AC 24 V, On/Off

Control	On/Off
Fail-Safe	Non-Spring Return
Nominal Voltage	AC 24 V
Transformer Sizing	1 VA (class 2 power source)
Enclosure	UL Enclosure Type 1
Power Supply	24 VAC, ±20%, 50/60 Hz
Power Consumption In Operation	1 W
Electrical Connection	Plenum cable 18 GA, 10 ft [3 m]
Overload Protection	electronic throughout full rotation
Input Impedance	0.36 kΩ
Angle Of Rotation	90°
Position Indication	Mechanically, pluggable
Running Time (Motor)	90 s / 90°
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP40
Degree Of Protection Nema/Ul	NEMA 1
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	35 dB(A)
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Fail-Safe Function	Non fail-safe
Control Type Web	Floating/3-point
Fail-Safe	NO
