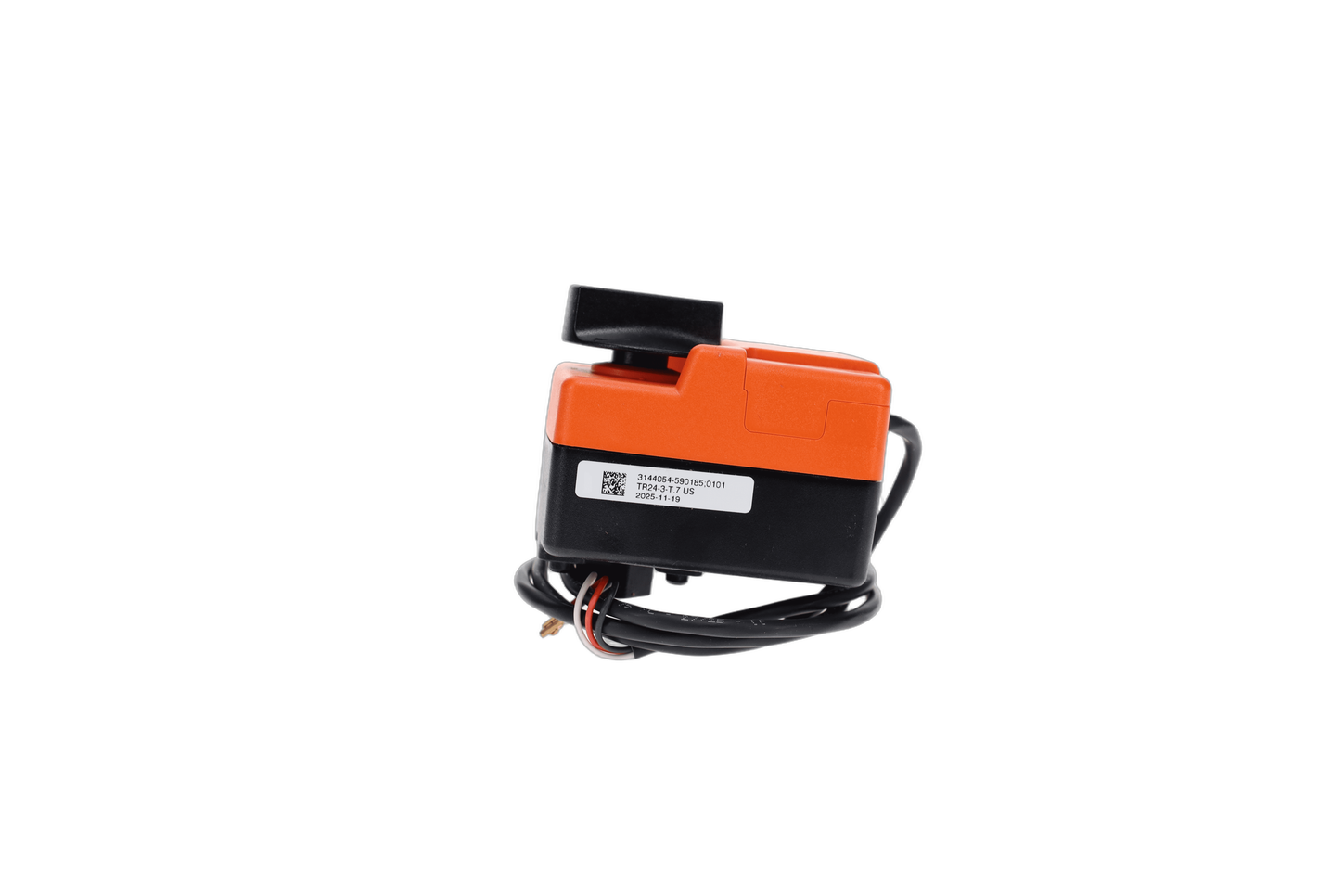

Belimo TR24-3 US
SKU: CS299062MPN: TR24-3 US
Valve Actuator, Non fail-safe, AC 24 V, On/Off, Floating point
Product Details
Valve Actuator, Non fail-safe, AC 24 V, On/Off, Floating point
Attributes
| Control | On/Off Floating point |
| Fail-Safe | Non-Spring Return |
| Nominal Voltage | AC 24 V |
| Transformer Sizing | 1 VA (class 2 power source) |
| Enclosure | UL Enclosure Type 1 |
| Power Supply | 24 VAC, ±20%, 50/60 Hz |
| Power Consumption In Operation | 1 W |
| Electrical Connection | 18 GA plenum cable, 3 ft [1 m] |
| Overload Protection | electronic throughout full rotation |
| Input Impedance | 0.36 kΩ |
| Angle Of Rotation | 90° |
| Position Indication | Mechanically, pluggable |
| Running Time (Motor) | 90 s / 90° |
| Ambient Humidity | max. 95% r.H., non-condensing |
| Ambient Temperature | -22…122°F [-30…50°C] |
| Storage Temperature | -40…176°F [-40…80°C] |
| Degree Of Protection Iec/En | IP40 |
| Degree Of Protection Nema/Ul | NEMA 1 |
| Connection | cable |
| Servicing | maintenance-free |
| Nominal Voltage Dc | 24 V |
| Nominal Voltage Ac | 24 V |
| Noise Level, Motor | 35 dB(A) |
| Quality Standard | ISO 9001 |
| Agency Listing | cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC |
| Fail-Safe Function | Non fail-safe |
| Control Type Web | Floating/3-point |
| Fail-Safe | NO |
Specifications
| SKU | CS299062 |
|---|---|
| MPN | TR24-3 US |
