Carrier ICM292

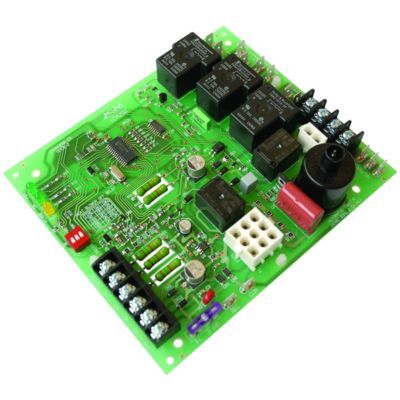

ICM Controls® - ICM292 Control Board

Furnace Control Control - replacement for Rheem 62-24140-04 control boards

DETAILS:

• Low cost form, fit and functional replacement for Rheem: 62-24140-04
• Direct Spark Ignition (DSI) control
• Microprocessor-based
• Controls inducer motors, air cleaner (if equipped), humidifier (if equipped), spark ignitor, and the gas valve
• Monitors timing, trial for ignition, system switches, flame sensing, and lockout
• 100-percent lockout safety feature
• Compatible with LP or Natural gas
• LED indication for status and fault codes to aid in troubleshooting

SPECIFICATIONS:

Control Voltage: 24 VAC (18-30 VAC), 60Hz

Line Voltage: 115 VAC, 60Hz

Timing:

• Pre-Purge: 30 seconds
• Trial for Ignition: 7 seconds
• Retries: Two groups of two, 30 second delay within the group, and 3 minute delay between groups
• Lockout: 1-hour
• Post-Purge: 90, 120, 160 and 180 seconds

Inputs:

• Power: 24 VAC and COM
• Thermostat Interface: R,W, Y, and G
• System Switches: Vent pressure and limit switches (main and over-temperature switches in series)
• Flame Sensing
• Heat Blower OFF Delay (miniature slide switch set)

Outputs:

• Spark
• Gas Valve: GV
• Inducer Draft Motor: IDM
• Blower Motor: FAN, COOL and HEAT speeds
• Electric air Cleaner: EAC
• Humidifier Relay: HUM
• Heat/Cool Relay: H/C

LED Indicators:

• Power, Green LED: PWR
• Status, Green LED: OK
• Flame Status, Yellow LED: FLAME
