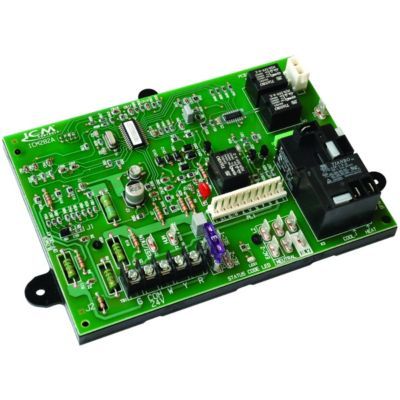

Carrier ICM282A

ICM Controls® - ICM282A Furnace Control OEM Replacement for Carrier HK42FZ-Series - 325878-751

ICM Controls - Furnace Control OEM Replacement Control Board - Carrier HK42FZ-Series 325878-751

DETAILS:

• Low cost replacement for Carrier HK42FZ004/007/008/009/011/013/016
• Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
• Microprocessor-based precision
• Software for enhanced controls operation in counterflow and downflow furnace applications
• Designed for 100% gas shutoff in case of ignition failure
• Twinning compatible with another ICM282A board
• Reverse polarity protection
• Secondary brownout voltage protection
• Compatible with 24 VAC standard thermostat
• Diagnostic fault codes/LED to aid in troubleshooting

SPECIFICATIONS:

• Line Voltage Range: 98 to 132 VAC @ 60Hz
• Ignitor: 5A @ 120 VAC
• Cool Blower: 30A, 2 HP, 240 VAC
• Heat: 5A, ½ HP, 240 VAC
• Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
• Gas Valve: 1.5A @ 30 VAC

REPLACES:

• Carrier: 325878-751, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016
• ICP: 1176943
