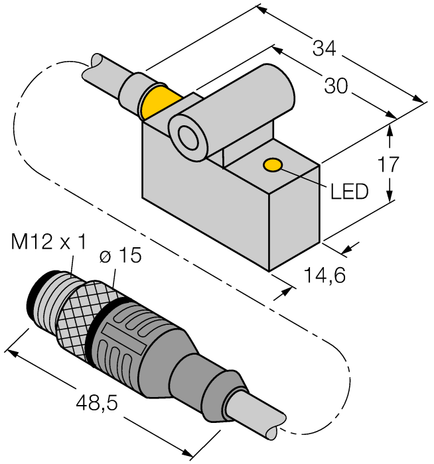

Turck BIM-IKE-AN6X-0.3-RS4T W/KLI3
SKU: CS4209932MPN: BIM-IKE-AN6X-0.3-RS4T W/KLI3Alternate Part #: 4621598
4621598 - TRANS., RECT., DC, PIGTAIL M12
$137.18
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- Rectangular, height 17 mm
- Active face in front
- Metal, GD-Zn
- Magnetic-inductive sensor
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Pigtail with male end, M12 x 1
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | 30 x 14.6 x 0.0 mm, IKE |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Metal, GD-Zn |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP67 |
Specifications
| SKU | CS4209932 |
|---|---|
| MPN | BIM-IKE-AN6X-0.3-RS4T W/KLI3 |
| Alternate Part # | 4621598 |
