Turck BCF5-S18-AP4X-0.2-RS4T
SKU: CS4209561MPN: BCF5-S18-AP4X-0.2-RS4TAlternate Part #: 2503099
2503099 - CF, BARREL-FL, GEN., GEN.
$249.72
UnitAvailable on backorder
Product Details
Capacitive Sensor

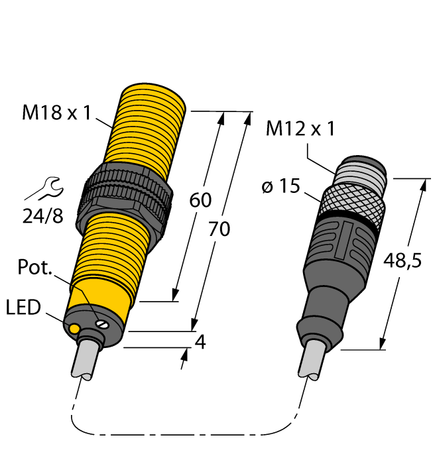

- Threaded barrel, M18 x 1
- Plastic, PA12-GF30
- Fine adjustment via potentiometer
- Increased EMI protection (even with high frequency equipment)
- Suited for highly viscous media
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- Cable with connector, M12 × 1
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M18 x 1 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270102 -/- Capacitive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Function | For highly viscous media |
| Housing Material | Plastic, PA12-GF30, PEI |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 7.5 mm |
Specifications
| SKU | CS4209561 |
|---|---|
| MPN | BCF5-S18-AP4X-0.2-RS4T |
| Alternate Part # | 2503099 |
