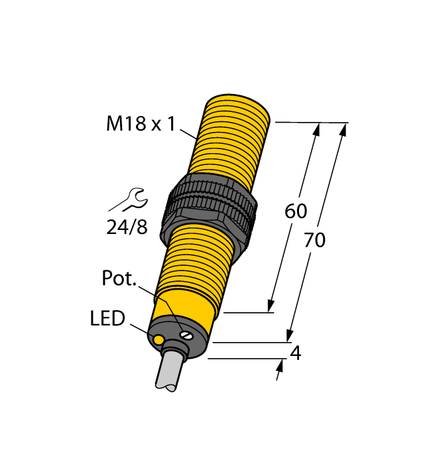

Turck BC5-S18-AP4X
SKU: CS2759900MPN: BC5-S18-AP4XAlternate Part #: 25030UPC/EAN: 4047101088939
25030 - C, BARREL-FL, GEN., GEN.
$426.04
UnitAvailable on backorder
Product Details
Capacitive Sensor
- M18 × 1 threaded barrel
- Plastic, PA12‐GF30
- Fine adjustment via potentiometer
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- Cable connection
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | UL |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270102 -/- Capacitive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Plastic, PA12-GF30, PEI |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 7.5 mm |
Specifications
| SKU | CS2759900 |
|---|---|
| MPN | BC5-S18-AP4X |
| Alternate Part # | 25030 |
| UPC/EAN | 4047101088939 |
You may also like

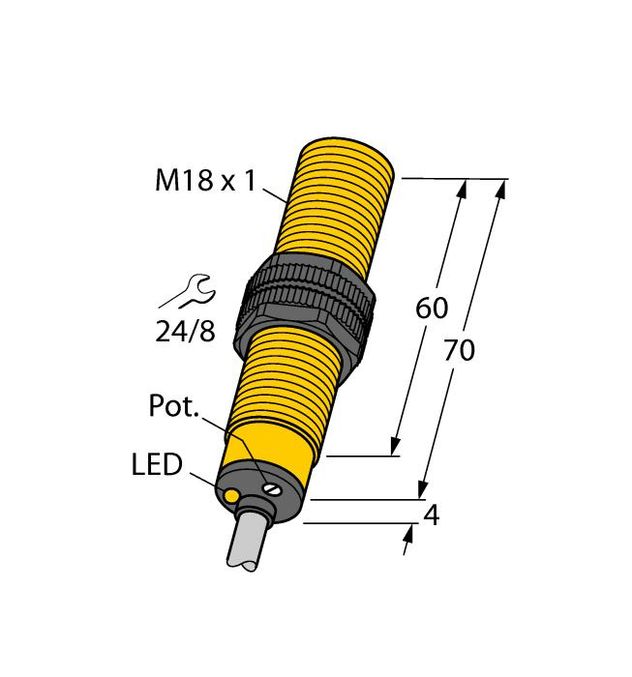

Turck BC5-S18-AP4X 7M
$358.01Unit
Turck BC5-S18-AP4X-H1141/S250
$426.04Unit
Turck BC5-S18-RP4X
$426.04UnitTurck BC5-S18-AN4X
$426.04UnitTurck BC5-S18-AZ3X
$442.26UnitTurck BC5-S18-RZ3X
$442.26UnitTurck BCF5-S18-AP4X
$234.51Unit

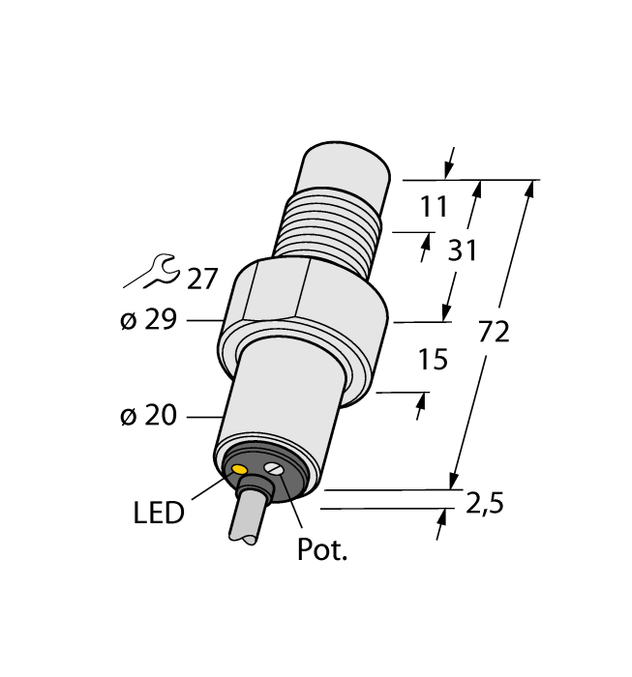

Turck BC5-S185-AP4X
$484.94UnitTurck BCF5-S18-AP4X/S90
$246.89Unit

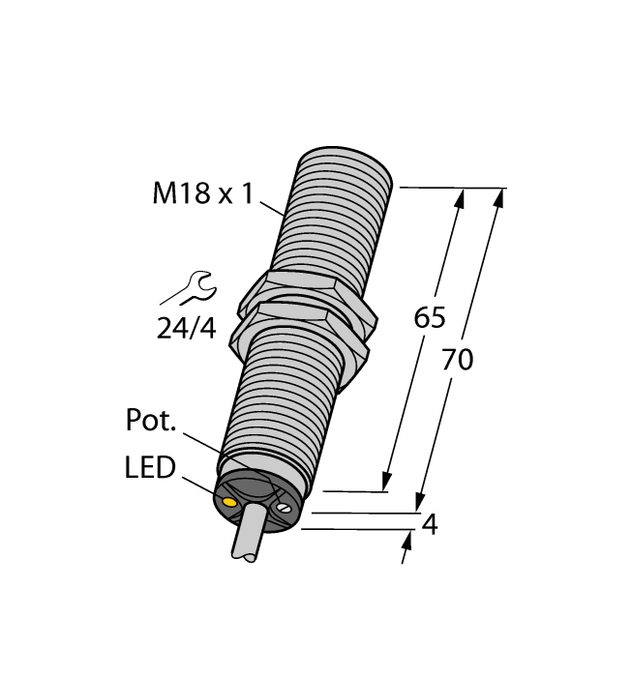

Turck BC5-M18-AP4X
$426.04Unit

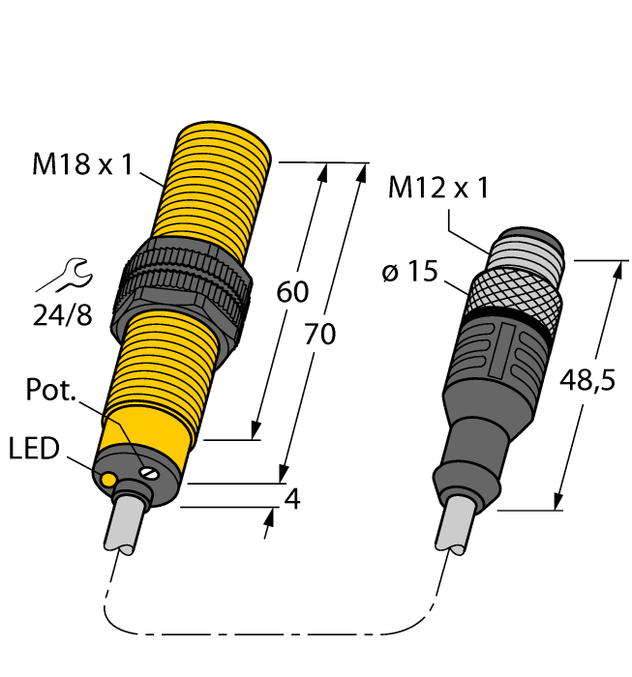

Turck BCF5-S18-AP4X-0.2-RS4T
