Turck BI6R-W30-DAN6X-H1141

SKU: CS4209263MPN: BI6R-W30-DAN6X-H1141Alternate Part #: 14037UPC/EAN: 4047101068559

14037 - FERRITE, RING, DC, CON. M12

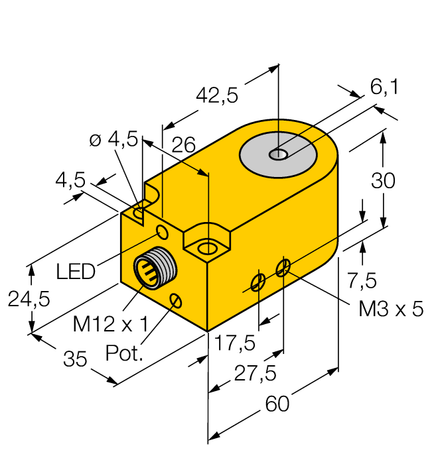

Turck BI6R-W30-DAN6X-H1141, BI6R-W30-DAP6X-H1141
$647.17
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

Ring Sensor

  • Rectangular, height 30 mm
  • Plastic, PA12‐GF30
  • Pulse duration 100 ms
  • Sensitivity adjusted via potentiometer
  • DC 3-wire, 10…30 VDC
  • Dynamic output behaviour
  • NO contact, NPN output
  • M12 x 1 male connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size 60 x 35 x 30 mm, W30
Customs Tariff Number 85365019900.0000
Design Ring sensor
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Plastic, PA12-GF30
Inside Ring Diameter D 6.1 mm
Operating Voltage 10…30 VDC
Output Function NO contact, NPN
Protection Class IP67
Special Feature Ring sensor, dynamic output
Switching Frequency 0.0080 kHz

Specifications

SKUCS4209263
MPNBI6R-W30-DAN6X-H1141
Alternate Part #14037
UPC/EAN4047101068559
