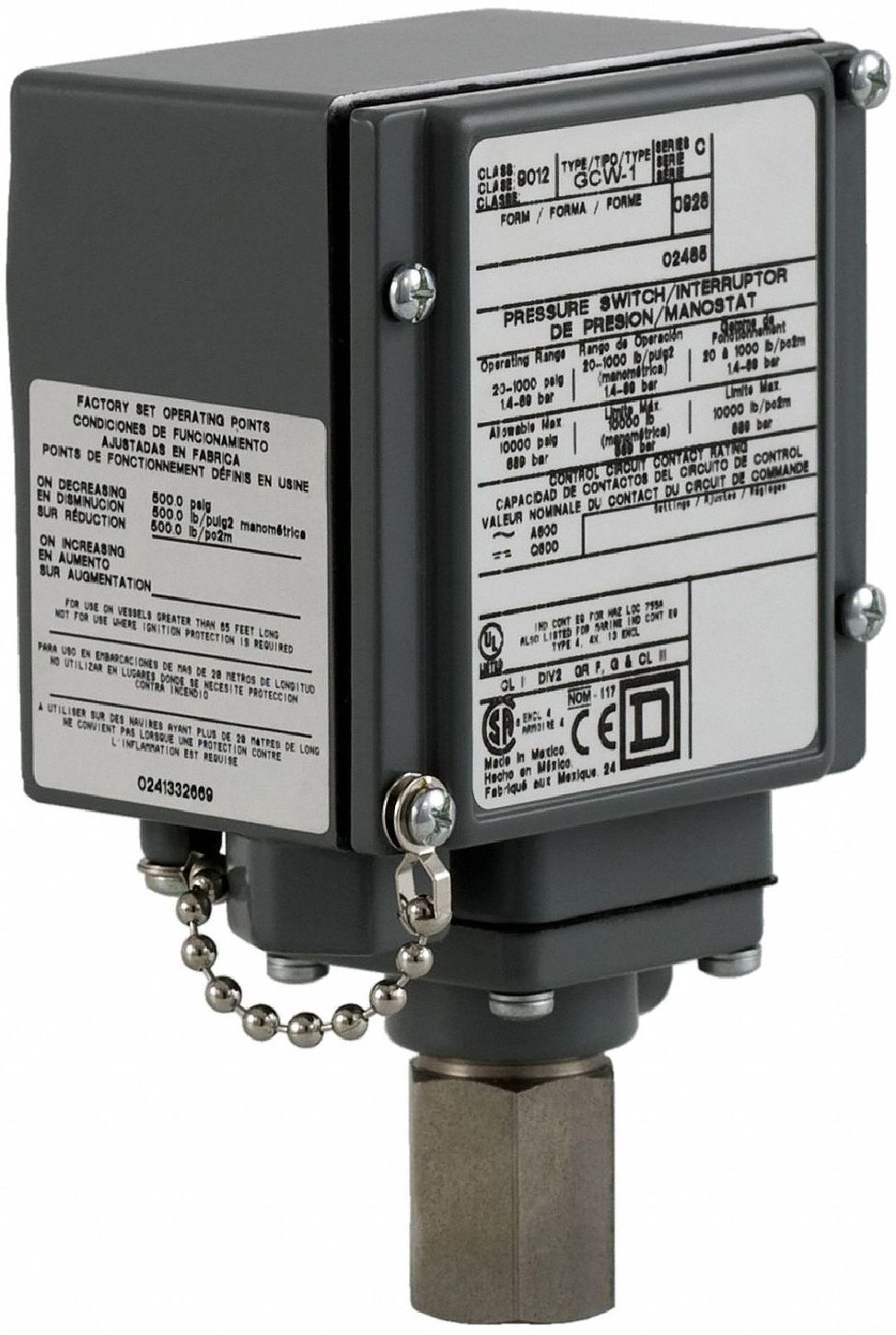

Schneider Electric 9012GFW1

Name: Schneider Electric 9012GFW1
Brand: Schneider Electric
SKU: CS4148333
Availability: OutOfStock

SKU: CS4148333MPN: 9012GFW1UPC/EAN: 785901024934

Pressure switch 9012G, fixed scale, 1 threshold, 20 to 1000 PSIG PSIG

Product Details

Pressure Switch:

Type: G* Used in pneumatic or hydraulic systems on a wide variety of machine and process applications to protect the equipment and control/monitor the system pressure* UL Listed File Number: E12158 CCN NKPZ - CSA Certified File Number: LR25490 class 3211 03 - CE Marked* Enclosure Rating: NEMA 4/4X/13* Enclosure material: Die cast aluminium alloy* Pressure sensor type: Electromechanical pressure switch* Pressure sensor size: 1000 psi* Maximum pressure: 10000 psi* Range on decreasing pressure: 20 to 1000 psi* Approximate differential at mid-range: 59 psi +/-9* Cable entry: 0.5 Inch NPT conduit entrance* Contacts type and composition: NC-NO, 2 SPDT-DB* Electrical connection: Screw-clamp terminals, AWG 22...AWG 12* Teminal block: 4 screw terminals* Differential Type: Fixed

Ambient Air Temperature For Operation	-10-185 °F
Ambient Air Temperature For Operation 1	-10-185 °F
Cable Entry	0.5 inch NPT conduit entrance
Electrical Circuit Type	control circuit
Enclosure Material	die cast aluminium alloy 380
Local Display	without
Materials In Contact With Fluid	440 stainless steel# #Viton fluorocarbon# #teflon# #303 stainless steel
Maximum Pressure	1000 psi
Mechanical Durability	3000000 cycles
Operating Position	any position
Pressure Sensor Name	9012G
Pressure Sensor Size	1000 psi
Pressure Sensor Type	electromechanical pressure switch
Pressure Switch Type Of Operation	detection of 1 single threshold
Product Certifications	CSA LR25490 class 3211 03# #CE# #UL listed file E12158 CCN NKPZ
Range Of Product	9012G
Range On Decreasing Pressure	20-1000 psi
Repeat Accuracy	0.04
Repeat Accuracy 1	0.04
Scale Type	fixed
Setting	internal
Standards	CE# #CSA C22.2 No 14# #UL 508
Terminal Block Type	4 screw terminals
