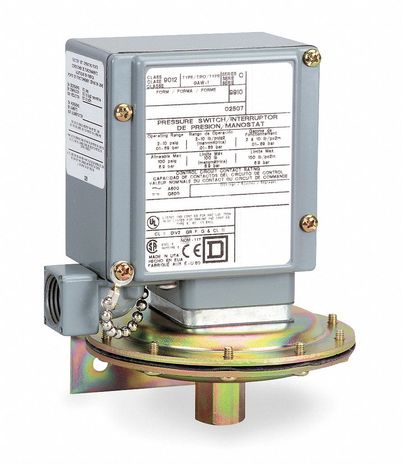

Telemecanique 9012GFW22

9012G, pressure switch 9012 g, fixed scale, 1 threshold, 90 to 2900 PSIG PSIG

Pressure Switch:

• Type: G* Used in pneumatic or hydraulic systems on a wide variety of machine and process applications to protect the equipment and control/monitor the system pressure* UL Listed File Number: E12158 CCN NKPZ - CSA Certified File Number: LR25490 class 3211 03 - CE Marked* Enclosure Rating: NEMA 4/4X/13* Enclosure material: Die cast aluminium alloy* Pressure sensor type: Electromechanical pressure switch* Pressure sensor size: 2900 psi* Maximum pressure: 15000 psi* Range on decreasing pressure: 90 to 2900 psi* Approximate differential at mid-range: 170 psi +/-15* Cable entry: 0.5 Inch NPT conduit entrance* Contacts type and composition: 2(NC-NO), DPDT-DB* Electrical connection: Screw-clamp terminals, AWG 22...AWG 12* Teminal block: 8 screw terminals* Differential Type: Fixed
