Dwyer 8C-2
SKU: CS4125385MPN: 8C-2Alternate Part #: 124467-01
8C-2 ⅛DIN TEMP CNTRL VT PULS
$149.15
UnitAvailable on backorder
Product Details
⅛ DIN temperature controller, voltage pulse output.
Attributes
| Accuracy | ±0.25% span, ±1 least significant digit. |
| Agency Approval | CE, RoHS, cUL, UL. |
| Agency Approvals | CE, RoHS, cUL, UL. |
| Commodity Code | R0AH |
| Communication | RS-485 Modbus® ASCII communication protocol. |
| Control Output Rating | Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA; Communication: RS-485 Modbus® Communication Protocol. |
| Display | Two 4-digit, 7 segment .38” H (9.53 mm) LED’s. PV: red; SV: green. |
| Front Panel Rating | IP56. |
| Input | Thermocouple & RTD. |
| Inputs | Thermocouple & RTD. |
| Memory Backup | Nonvolatile memory. |
| Operating Temperature | 32 to 122°F (0 to 50°C). |
| Power Consumption | 5 VA max. |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz. |
Specifications
| SKU | CS4125385 |
|---|---|
| MPN | 8C-2 |
| Alternate Part # | 124467-01 |
You may also like
Dwyer 8C-5
Contact us for pricing and availabilityDwyer 8C-3
$149.15UnitDwyer 4C-2
$170.27Unit
Dwyer 16C-2
$137.88UnitDwyer 8B-53-LV
$184.89UnitDwyer 8B-63-LV
$187.83UnitDwyer 8B-33-LV
$184.33UnitDwyer 8B-23
$184.33Unit

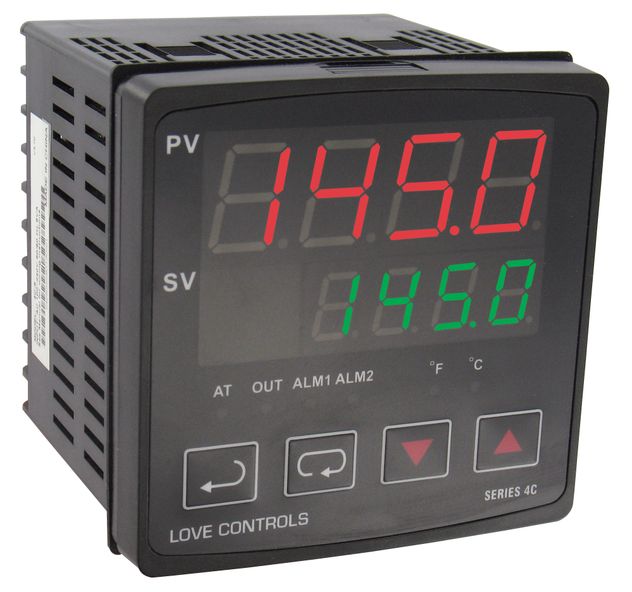

Dwyer 4C-5
