Dwyer 4C-5

Name: Dwyer 4C-5
Brand: Dwyer
SKU: CS4124136
Availability: OutOfStock

SKU: CS4124136MPN: 4C-5Alternate Part #: 124468-02

4C-5 ¼DIN TEM CNTRL CURRENT

Product Details

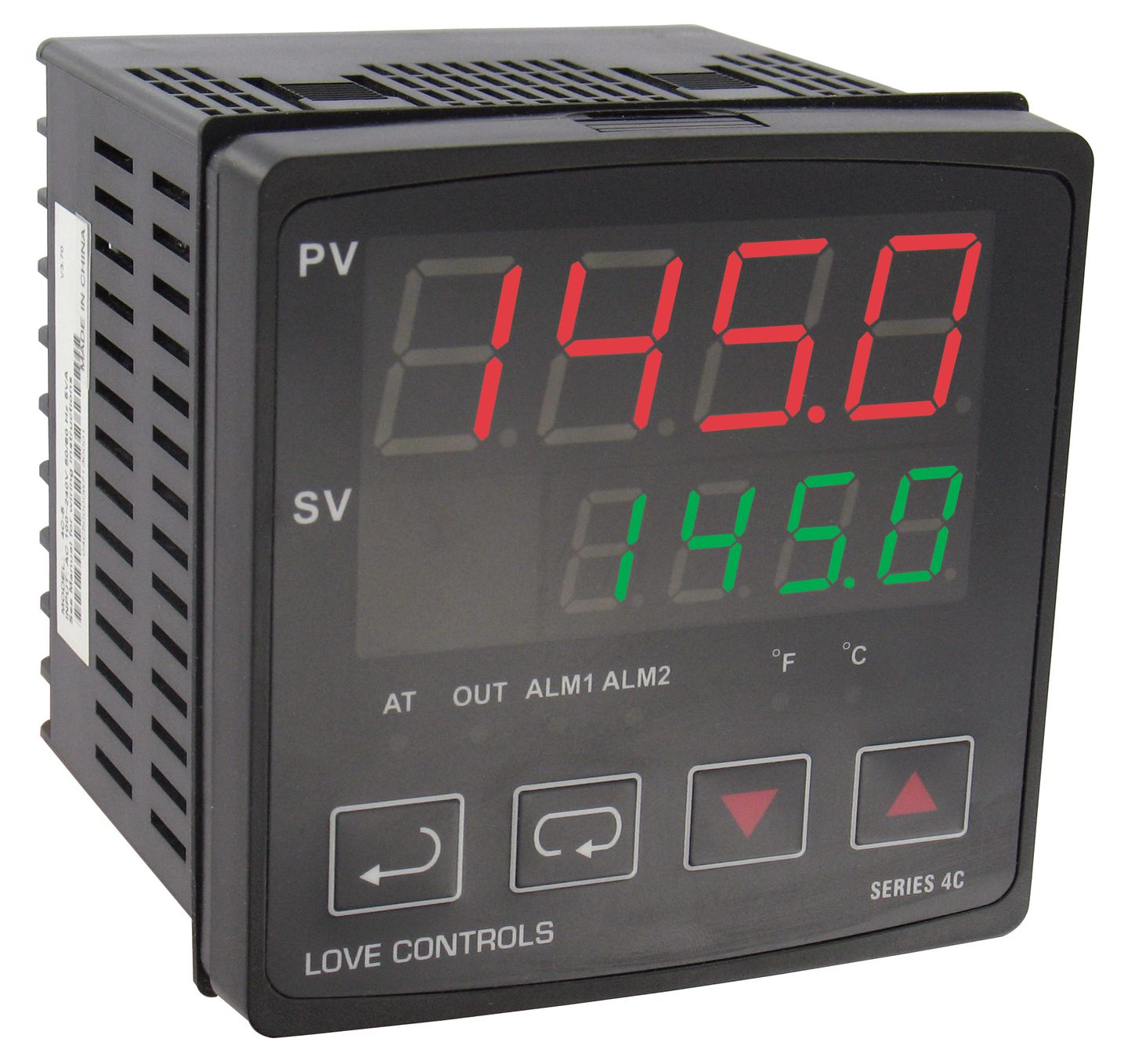

¼ DIN temperature controller, current output.

Accuracy	0.25% span, ±1 least significant digit.
Agency Approval	CE, RoHS, cUL, UL.
Agency Approvals	CE, RoHS, cUL, UL.
Commodity Code	R0AK
Communication	RS-485 Modbus® ASCII communication protocol.
Control Output Rating	Relay: SPDT, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Display	Two 4-digit, 7 segment LED’s. PV: red .75” H (19 mm); SV: green .5” H (12.7 mm).
Front Panel Rating	IP56.
Input	Thermocouple or RTD (see Catalog page).
Inputs	Thermocouple or RTD (see Catalog page).
Memory Backup	Nonvolatile memory.
Operating Temperature	32 to 122°F (0 to 50°C).
Power Consumption	5 VA max.
Supply Voltage	100 to 240 VAC, 50/60 Hz.
