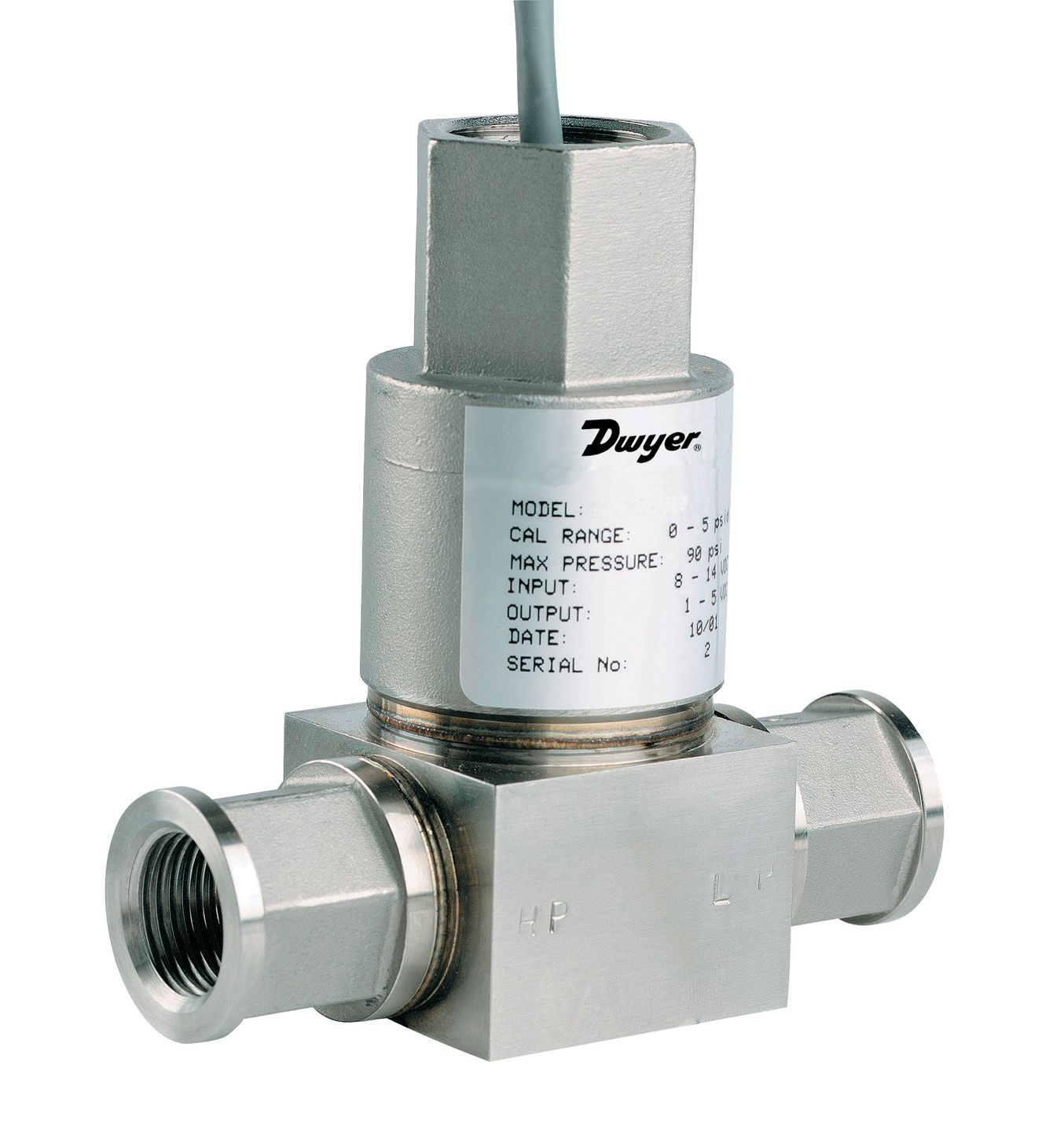

Dwyer 636D-3

Name: Dwyer 636D-3
Brand: Dwyer
SKU: CS4125055
Price: 2690.64 USD
Availability: OutOfStock

SKU: CS4125055MPN: 636D-3Alternate Part #: 124327-03

636D-3 TRANSMITTER 0-60 PSID

$2,690.64

Unit

Available on backorder

Quantity

remove

add

Product Details

Fixed range differential pressure transmitter, range 0-60 psid.

Accuracy	BFSL: ±0.5% F.S. (includes linearity, hysteresis & repeatability).
Commodity Code	R6BE
Compensated Temperature Range	-20 to 160°F (-29 to 71°C).
Compliance	CSA approved explosion-proof for Class I, Division 1, Groups B, C and D; Class II, Groups E, F, and G; Class III.
Current Consumption	4-20 mA for current output models; 3 mA for voltage output models.
Electrical Connection	2 ft, 22 AWG cable; ¾” female NPT conduit.
Electrical Connections	2 ft, 22 AWG cable; ¾” female NPT conduit.
Enclosure Rating	NEMA 4 (IP65).
Loop Resistance	900 ohms max. @ 30 VDC for current outputs. For voltage outputs, minimum lead resistance 50k ohms.
Mounting Orientation	±0.05 psi/90° rotation from horizontal.
Output Signal	4 to 20 mA DC or 1-5 VDC.
Power Requirement	12-30 VDC for 4-20 mA outputs; 8-14 VDC for 1-5 VDC outputs, both with reverse polarity protection.
Pressure Limit	3 x full scale differential pressure; burst: 2500 psig.
Process Connection	Two ½” female NPT.
Response Time	20 ms.
Service	Compatible gases, liquids or vapors.
Stability	±1.0% F.S./yr.
Thermal Effect	±2% F.S./50°F (reference to 77°F).
Wetted Material	Types 316L SS.
Zero And Span Adjustment	Fixed.
Zero And Span Adjustments	Fixed.
