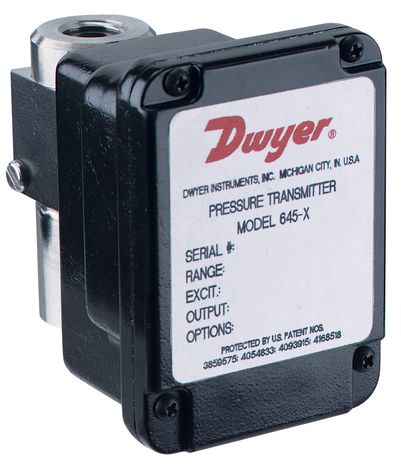

Dwyer 645-3
SKU: CS4125095MPN: 645-3Alternate Part #: 124069-03
645-3 10 PSID W/W XMTR
$1,106.52
UnitAvailable on backorder
Product Details
Wet/wet differential pressure transmitter, range 0-10 psid.
Attributes
| Accuracy | ±0.25% FS (RSS). |
| Agency Approval | CE. |
| Agency Approvals | CE. |
| Commodity Code | R8AM |
| Electrical Connection | Barrier strip terminal block with conduit enclosure and .875” (22 mm) diameter conduit opening. |
| Housing | Stainless steel/aluminum, NEMA 4X (IP56). |
| Loop Resistance | 0 to 1000Ω. |
| Manifold | Brass. |
| Output Signal | 4 to 20 mA, 2-wire. |
| Power Requirement | 11 to 30 VDC. |
| Pressure Limit | (High side) 1 to 5 psi: 20 x FS, 10 to 25 psi: 10 x FS, 50 psi: 5 x FS, 100 psi: 2.5 x FS; (low side) 2.5 x FS. |
| Process Connection | ¼”-18 female NPT. |
| Response Time | 30 to 50 ms. |
| Service | Compatible gases or liquids on both pressure and reference sides. |
| Thermal Effect | (includes zero and span) ±0.02% FS/°F, 30 to 150°F (-1 to 65°C). |
| Thermal Effects | (includes zero and span) ±0.02% FS/°F, 30 to 150°F (-1 to 65°C). |
| Valve Type | 90° on/off. |
| Wetted Material | 17-4 PH stainless steel, 300 Series stainless steel, fluoroelastomer and silicone O-rings and bleed screw seals. |
| Zero And Span Adjustment | Adjustable, ±1 mA, non-interactive. |
| Zero And Span Adjustments | Adjustable, ±1 mA, non-interactive. |
Specifications
| SKU | CS4125095 |
|---|---|
| MPN | 645-3 |
| Alternate Part # | 124069-03 |
