Dwyer 490A-4
SKU: CS4124590MPN: 490A-4Alternate Part #: 100373-53
490A-4 0-100 PSI
$1,116.37
UnitAvailable on backorder
Product Details

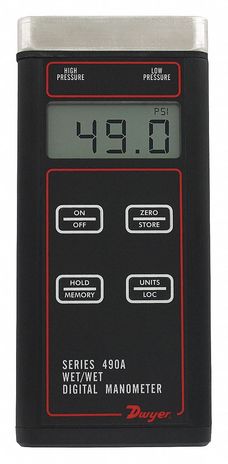

Wet/Wet handheld digital manometer, 0 to 100 psi (0 to 689.5 kPa)
Attributes
| Accuracy | ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C). |
| Agency Approval | CE. |
| Commodity Code | 0240 |
| Display | 0.42” (10.6 mm) 4 digit LCD. |
| Electronic Temperature Limits | 32 to 140°F (0 to 60°C). |
| Power Requirement | 9 V alkaline battery, installed non-functional, user replaceable. |
| Pressure Hysteresis | ±0.1% FS. |
| Pressure Limit | See chart on catalog page. |
| Process Connection | Two ⅛” (3.18 mm) female NPT. |
| Resolution | See chart on catalog page. |
| Service | Compatible gases & liquids. |
| Storage Temperature Limits | -4 to 176°F (-20 to 80°C). |
| Wetted Material | Without valve: 316L SS, -3V option: 316LSS, Buna-N, silicone, grease, PTFE, brass 360, copper, reinforced acetal copolymer. |
Specifications
| SKU | CS4124590 |
|---|---|
| MPN | 490A-4 |
| Alternate Part # | 100373-53 |
