Dwyer SCD-8100
SKU: CS4120658MPN: SCD-8100Alternate Part #: 124720-01

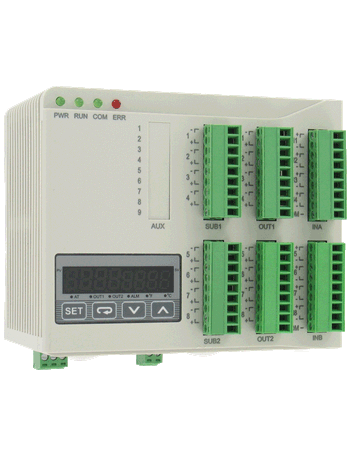

SCD-8100 TEMP CONTROL W/RTD IN
$404.13
UnitAvailable on backorder
Product Details
Multi-loop DIN rail mount temperature base controller with RTD input.
Attributes
| Agency Approval | CE, cUL, UL. |
| Agency Approvals | CE, cUL, UL. |
| Commodity Code | R0BB |
| Communication | RS-485 Modbus® A-5-11/RTU communication protocol. |
| Communications | RS-485 Modbus® A-5-11/RTU communication protocol. |
| Control Output Rating | Relay output: SPST 3A @ 250 VAC resistive; Voltage pulse: Output: 24 VDC max, 40 mA; Current output: 4 to 20 mA (resistive load < 500 Ω) (output 1 or 2 only); Linear voltage: 0 to 10 VDC (resistive load > 1000 Ω) (output 1 or 2 only). |
| Display | Optional, single row 7 segment LED display, 4 bit PV = Red, SV = Green. |
| Input | Thermocouple: RTD (depending on model, see Catalog page). |
| Memory Backup | Non-volatile memory. |
| Operating Temperature | 32 to 122°F (0 to 50°C). |
| Power Consumption | 10W + (3W x # of SCD-2000 modules). |
| Supply Voltage | 24 VDC, isolated switching power supply. |
Specifications
| SKU | CS4120658 |
|---|---|
| MPN | SCD-8100 |
| Alternate Part # | 124720-01 |
