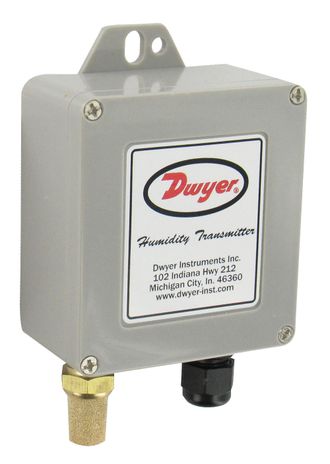

Dwyer WHT-311

Name: Dwyer WHT-311
Brand: Dwyer
SKU: CS3366846
Availability: OutOfStock

SKU: CS3366846MPN: WHT-311Alternate Part #: 100556-01

WHT-311 RH/TEMP 4-20MA 3%

Product Details

Water-resistant humidity/temperature transmitter with sintered filter, 3% accuracy, 4-20 mA humidity and temperature output.

Accuracy	4 to 20 mA Output: ±0.9°F @ 72°F (±0.3°C @ 25°C); Passive Output: ±0.36°F @ 77°F (±0.2°C @ 25°C).
Commodity Code	0307
Compensated Temperature Range Rh	-4 to 140°F (-20 to 60°C).
Compliance	CE.
Drift	<1% RH/year.
Electrical Connection	Removable screw terminal block.
Enclosure	ABS.
Enclosure Rating	Designed to meet NEMA 3S (IP54).
Hysteresis Rh	±1%.
Output Signal	4-20 mA loop powered models: 4-20 mA; 0-10 V output models: 0-10 V @ 5 mA max; 0-5 V output models: 0-5 V @ 5 mA max.
Power Requirement	4-20 mA loop powered models: 10-35 VDC; 0-10 V output models: 15-35 VDC or 15-29 VAC; 0-5 V output models: 10-35 VDC or 10-29 VAC.
Relative Humidity Range	0 to 100% RH.
Repeatability Rh	±0.1% typical.
Response Time	15 s.
Rh Sensor	Capacitance polymer.
Sensor Accuracy Rh	±2% 20 to 80% RH, ±3% @ 10 to 20%, 80 to 90% RH.
Storage Temperature	-40 to 176°F (-40 to 80°C).
Temperature Range	-40 to 140°F (-40 to 60°C).
Temperature Sensor	4 to 20 mA output: solid state band gap; Passive output: 10K @ 25°C thermistor (Dwyer curve A).
