Dwyer PFT-HDN-B611-S

Name: Dwyer PFT-HDN-B611-S
Brand: Dwyer
SKU: CS4119871
Price: 976.30 USD
Availability: OutOfStock

SKU: CS4119871MPN: PFT-HDN-B611-SAlternate Part #: 120047-00

PFT-HDN-B611-S

$976.30

Unit

Available on backorder

Quantity

remove

add

Product Details

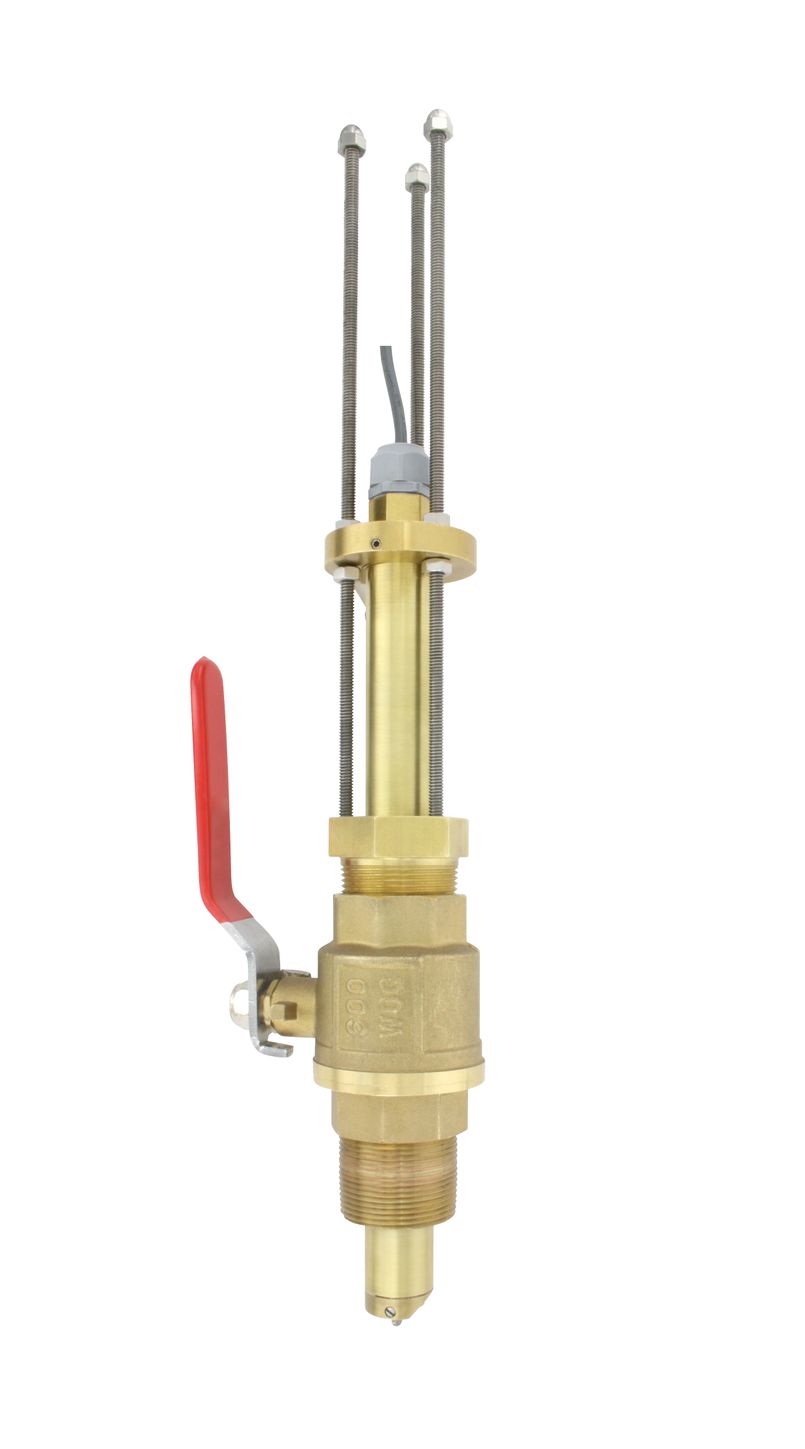

Paddlewheel flow sensor, insertion style, pulse output, brass body, 1-½” NPT connection FKM seals, tungsten-carbide shaft, PTFE bearings

Commodity Code	8312
Compliance	CE.
Electrical Connection	22 AWG shielded UL type PTLC rated 105°C, 20’ (6.1 m) long with cable gland. Can be extended up to 2000’ (609 m) with similar cable. Optional UL listed burial rated cable.
Enclosure Rating	NEMA 6P (IP67) *.
Housing Material	Brass or 316 SS.
Linearity	±1.0% of FS.
Output	Pulse: NPN open collector with square wave output, rated 60 V @ 50 mA maximum. Frequency: 3.2 to 200 Hz. Pulse Width: 2.5 msec ±25%. 4 to 20 mA: 4 mA is 0 ft/s, 20 mA is 25 ft/s.
Power Consumption	40 mA (max).
Power Requirement	10 to 35 VDC.
Pressure Limit	400 psig (27.6 bar) @ 100°F (37.8°C), 325 psig (22.4 bar) @ 212°F (100°C).
Process Connection	1-½” NPT male standard, 2” NPT male optional.
Range	1.2 to 25 ft/s (0.37 to 7.62 m/s).
Repeatability	±0.5% of FS.
Service	Water-based fluids.
Wetted Material	Body and fitting: Brass or 316 SS; Fitting O-ring: FKM standard, silicone or Buna-N optional; Impeller: 316 SS; Shaft: tungsten carbide standard or 316 SS optional; Bearing: PTFE standard.
