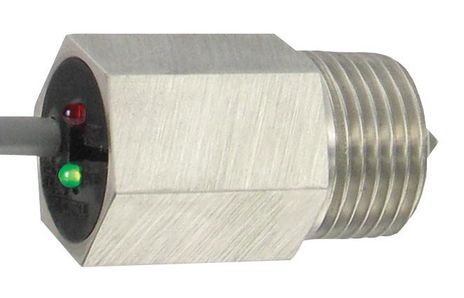

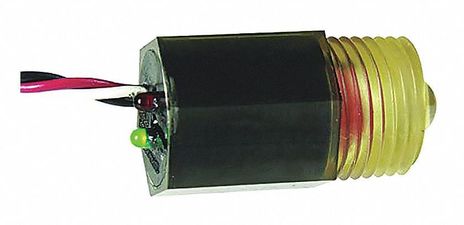

Dwyer OLS-11
SKU: CS4119701MPN: OLS-11Alternate Part #: 119157-01
OLS-11 POLYSULFONE
$121.33
UnitAvailable on backorder
Product Details
Optical level switch, Polysulfone wetted materials.
Attributes
| Commodity Code | 8209 |
| Current Consumption | 35 mA max. |
| Electrical Connection | 38” (965.2 mm) 3 conductor cable, 22 AWG wire. |
| Mounting Orientation | Horizontal or up to 45° from horizontal. |
| Output Signal | Vout (max.) = 28 VDC, Isink (max.) = 100 mA. |
| Power Requirement | 10 to 28 VDC. |
| Pressure Limit | OLS-11, 12: 200 psig (13.8 bar); OLS-10: 1000 psig (69 bar). |
| Process Connection | ½” male NPT. |
| Repeatability | ±0.02”; (0.5 mm) |
| Service | Noncoating compatible liquids. |
| Specific Gravity | No minimum. |
| Switch Type | NPN open collector. |
| Wetted Material | See chart on Catalog page. |
Specifications
| SKU | CS4119701 |
|---|---|
| MPN | OLS-11 |
| Alternate Part # | 119157-01 |
You may also like
Dwyer OLS-12
$267.78Unit

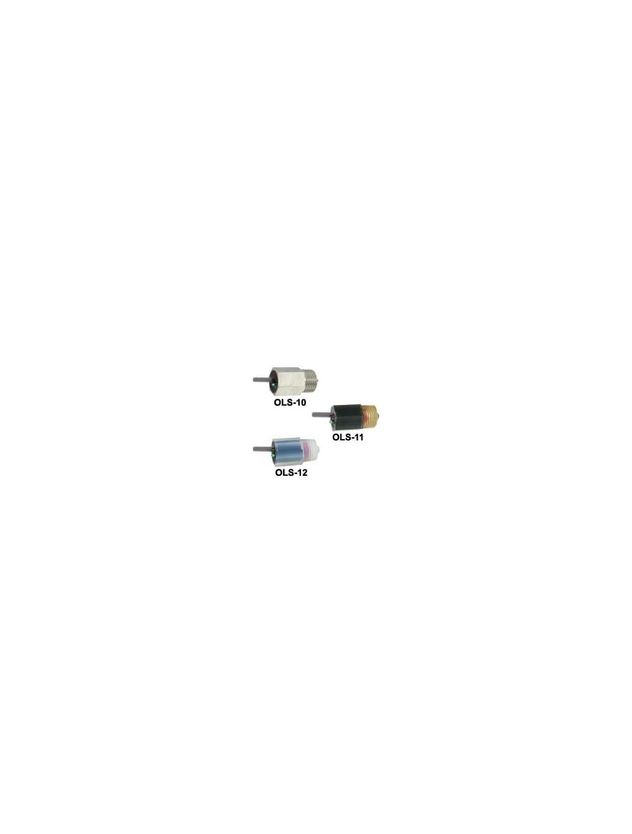

Dwyer OLS-10
$220.90Unit

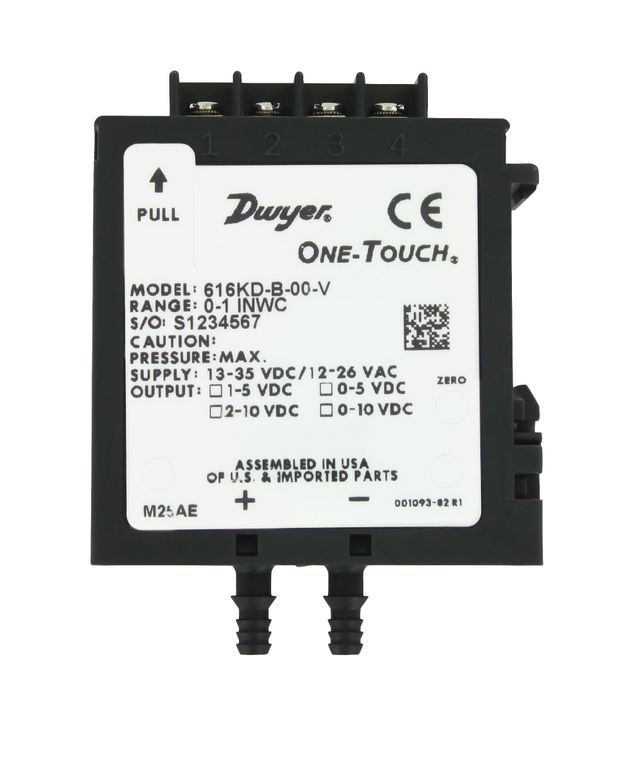

Dwyer 616KD-11
$119.66Unit

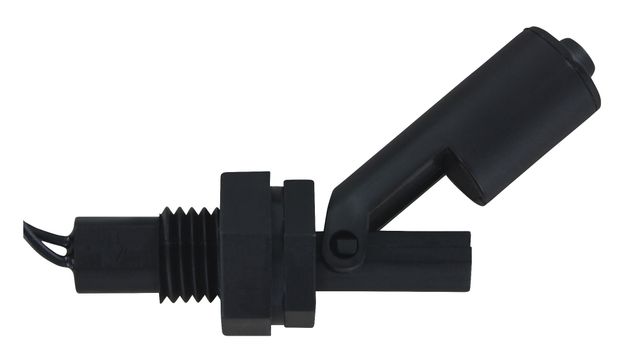

Dwyer F6-HPS-11
$35.64UnitDwyer 626-11-CB-P1-E5-S9
$263.64UnitDwyer 616KD-11-V
Contact us for pricing and availability

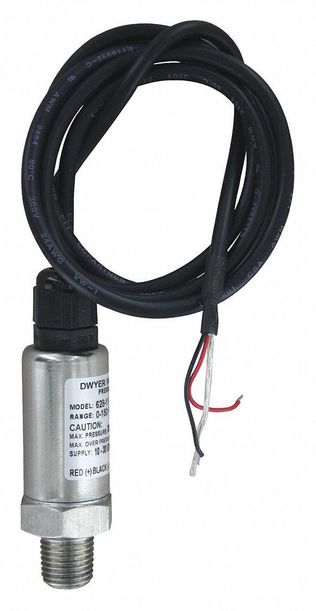

Dwyer 628-11-GH-P1-E1-S1
$142.06Unit

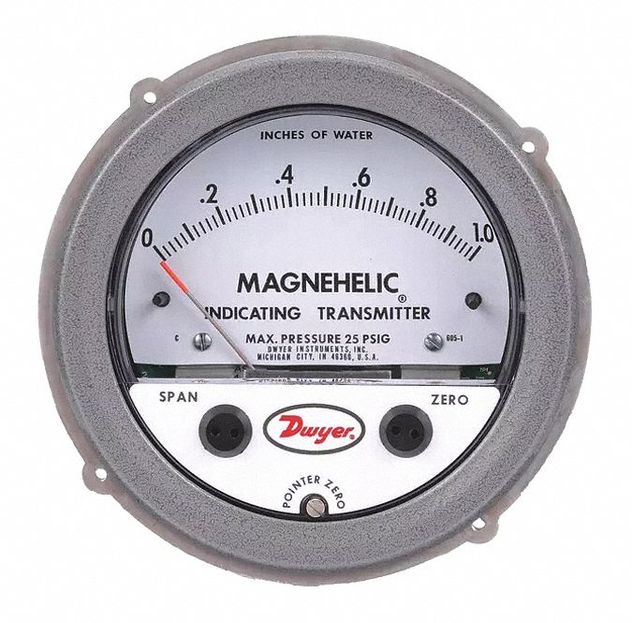

Dwyer 605-11
$573.53Unit

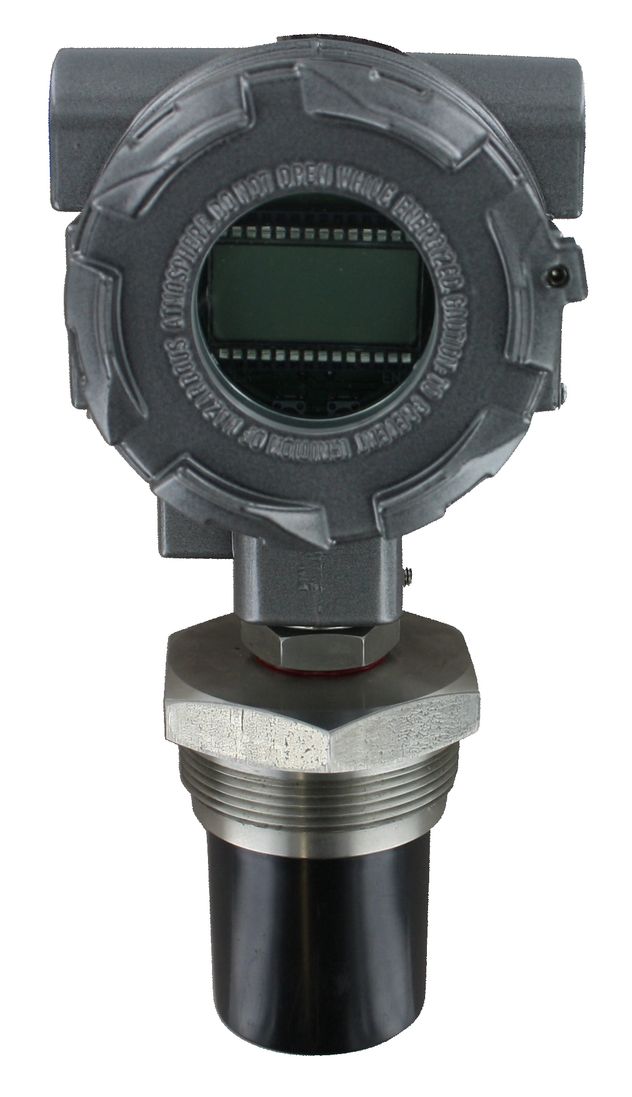

Dwyer ULT-11
$2,097.19UnitDwyer CX-11
$26.32Unit

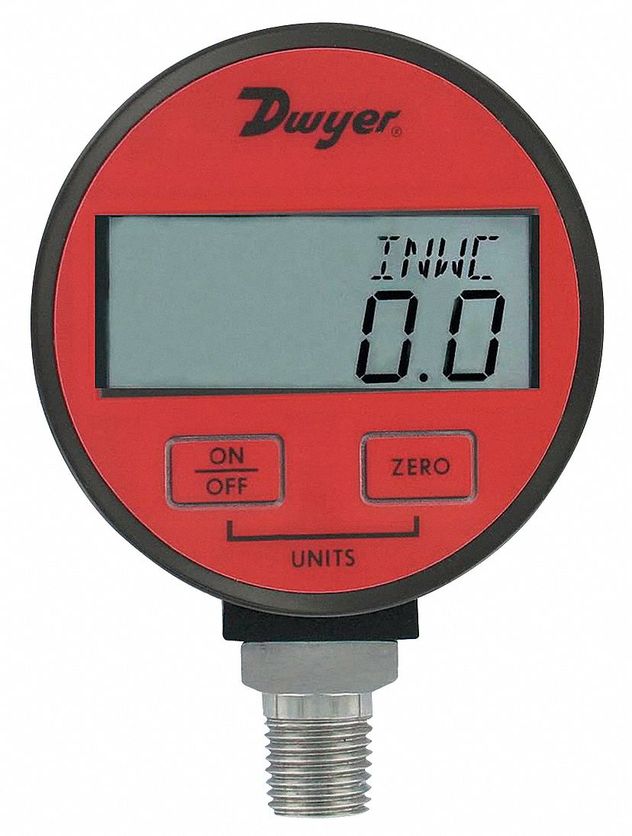

Dwyer DPGA-11
