Dwyer 628-11-GH-P1-E1-S1

Name: Dwyer 628-11-GH-P1-E1-S1
Brand: Dwyer
SKU: CS4124982
Price: 142.06 USD
Availability: OutOfStock

SKU: CS4124982MPN: 628-11-GH-P1-E1-S1Alternate Part #: 101926-34

628-11-GH-P1-E1-S1 150 PSI

Dwyer 626-08-GH-P1-E4-S1, 626-09-GH-P1-E4-S1, 626-10-GH-P1-E4-S1, 626-11-GH-P1-E4-S1, 626-12-GH-P1-E4-S1, 626-14-GH-P1-E4-S1, 628-00-GH-P9-E1-S1, 628-08-GH-P1-E4-S1, 628-09-GH-P1-E4-S1, 628-10-GH-P1-E4-S1, 628-11-GH-P1-E1-S1, 628-13-GH-P1-E4-S1, 628-14-GH-P1-E4-S1

$142.06

Unit

Available on backorder

Quantity

remove

add

Product Details

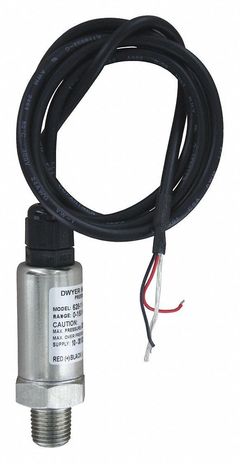

Industrial pressure transmitter, range 0-150 psig, general purpose housing, ¼” male NPT, 3’ cable, 4-20 mA, max. pressure 300 psig, over pressure 750 psig.

Attributes

Accuracy	626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity, hysteresis, and repeatability.)
Commodity Code	0043
Compensated Temperature Range	0 to 175°F (-18 to 79°C).
Compliance	CE, Optional: NSF/ANSI 61/372, ANSI/UL 218, ANSI/UL 508, NEPA 20.
Current Consumption	38 mA maximum (for 4 to 20 mA output); 10 mA maximum (for 0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED).
Electrical Connection	Model dependent options: Wire end, Hirschman DIN EN 175801-803-C, Packard, Deutsch, M12.
Enclosure Rating	NEMA 4X (IP66).
Loop Resistance	0-1000 Î© max. R max = 50 (Vps-10) Î© (4-20 mA output), 5 KÎ© min (0-5, 1-5, 0.5-4.5 VDC output), 15 KÎ© min (1-6, 0-10, 2-10 VDC output).
Mounting Orientation	Mount in any position.
Output Signal	4 to 20 mA, 0 to 5 VDC,1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC, or selectable 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC for -CB option.
Power Requirement	10-30 VDC (for 4-20 mA, 0-5, 1-5, 1-6 VDC outputs); 13-30 VDC (for 0-10, 2-10 VDC outputs); 5 VDC ±0.5 VDC (for 0.5-4.5 VDC ratio-metric output), 10-35 VDC (for 4-20 mA with -CB option); 13-35 VDC or isolated 16-33 VAC (for selectable output with -CB option).
Pressure Limit	See table on catalog page.
Process Connection	Model dependent options: ⅛”, ¼”, ½” male NPT; ¼” female NPT; ¼” male or female BSPT; ⅛” or ¼” male BSPP ISO 1179; ¼” female SAE valve depressor.
Response Time	300 ms.
Service	Compatible gases and liquids.
Thermal Effect	±0.02% FS/°F. (includes zero and span).
Wetted Material	Type 316L SS.
