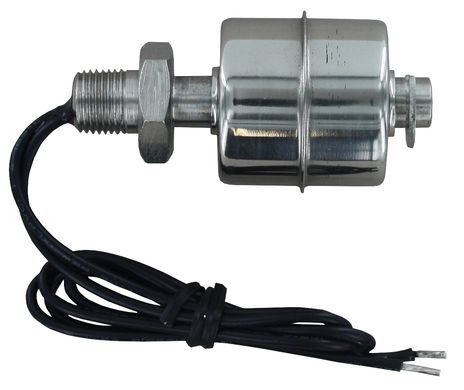

Dwyer F6-SS
SKU: CS4118161MPN: F6-SSAlternate Part #: 124574-00
F6-SS VERT INT MT ⅛ NPT
$65.19
UnitAvailable on backorder
Product Details
Vertical level switch, 316SS float and stem, temperature limit 257°F (125°C), pressure limit 218 psig (15 bar), 0.65 min. specific gravity, electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8” (30 cm) wire leads, ⅛” male NPT mounting, weight 1.59 oz (45 g).
Attributes
| Agency Approval | CE. |
| Commodity Code | R2MI |
| Electrical Connection | 22 AWG, 11.811” (300mm) long. |
| Electrical Rating | 20 VA: 0.17 A @ 120 VAC, 0.08 A @ 240 VAC. |
| Electrical Rating Maximum | F7-SB, -SS2 AC: 25 VA, 1.0A, 200 V DC: 10 W, 1.0 A, 200 V F7-PP, -BT, -HSS, -MHS AC: 25 VA, 1.0 A, 200 V DC: 10 W, 1.0 A, 200 V F7-HPS-1, -2 AC: 25 VA, 1.0 A, 200 V DC: 10 W, 1.0 A, 200 V (F7-HSS is rated explosion-proof for Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III). |
| Enclosure Rating | General purpose. |
| Magnet | Alnico (F7-SB, -PP, -BT, -HPS), ceramic (F7-SS2, -HSS, -MHS). |
| Mounting Connection | ⅛” NPTM (all vertical mount), ½” NPTM (F7-HPS-2, F7-HSS), M16 x 2 (F7-HPS-1), ½” x 13 thread (F7-MHS). |
| Mounting Orientation | F6-SS: vertical ±20°, F6-MHS/HPS: horizontal with index arrow pointing up or down. |
| Pressure Limit | F6-SS & F6-MHS: 218 psi (15 bar). F6-HPS-11, 21, 31: 116 psi (8 bar). |
| Process Connection | F6-SS: ⅛” NPT, HPS-21, 31: ½” NPT, F6-MHS, F6-HPS-11: M16*2. |
| Service | Compatible liquids. |
| Specific Gravity | F6-SS: 0.65, F6-MHS: 0.85, F6-HPS-11, 21, 31: 0.6. |
| Switch Type | SPST Hermetically sealed reed switch, reversible for NO or NC. |
| Wetted Material | See model table on catalog page. |
| Wire Leads | 22 AWG x 18” (46 cm), vertical mount models; 22 AWG x 39” (1 m), models F7-HPS-1, -2; 22 AWG x 24” (61 cm), models F7-HSS, -MHS. |
Specifications
| SKU | CS4118161 |
|---|---|
| MPN | F6-SS |
| Alternate Part # | 124574-00 |
