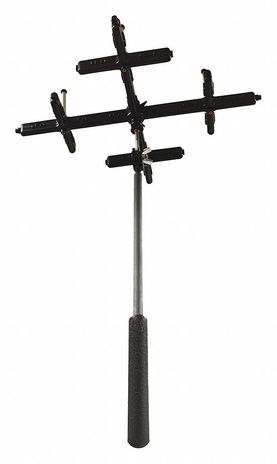

Dwyer 160G
SKU: CS4123311MPN: 160GAlternate Part #: 100609-00
160G AIR GRID
$369.32
UnitAvailable on backorder
Product Details
Averaging air flow grid.
Attributes
| Accuracy | ±2% FS. |
| Commodity Code | 7240 |
| Compliance | RoHS. |
| K Factor | 0.84. |
| Process Connection | ⅛ to ¼” ID tubing. |
| Range | 1000 to 5000 FPM (5 to 25 m/s). |
| Service | Air or compatible gases. |
| Wetted Material | Grid: Black polycarbonate; Ball pivot joint: AL, plastic; Handle: Aluminum; Standoffs: Aluminum with rubber bumpers, two sets: 1.25” (31.7 mm) and 2” (50.8 mm), ⅛” ID / ¼” OD; Tubing: Two 10’ (3 m) lengths of silicone rubber. |
Specifications
| SKU | CS4123311 |
|---|---|
| MPN | 160G |
| Alternate Part # | 100609-00 |
You may also like

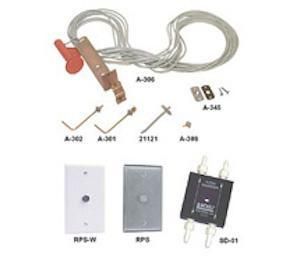

Dwyer A-602
