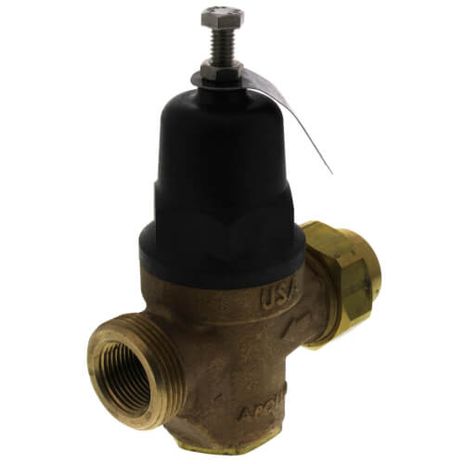

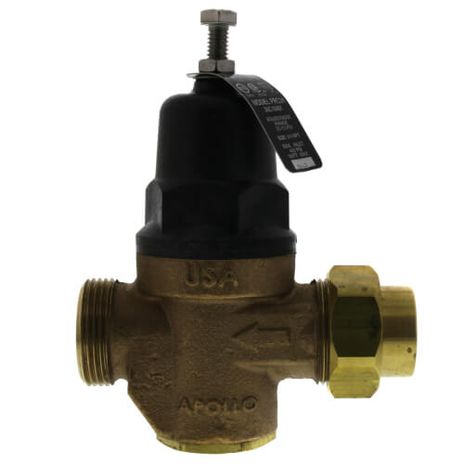

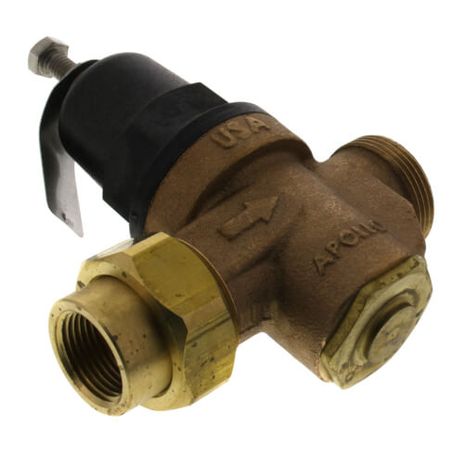

Apollo Valves 36C10401

¾” Single Union NPT x NPT Pressure Reducing Valve

The Apollo® Model PRC (36C Series) Pressure Reducing Valves are designed to protect nonpotable water distribution systems by automatically controlling excessive pressure changes. The valves integral thermoplastic cage provides maximum corrosion resistance. Designed for easy in-line servicing with bottom cleanout access to seat disc and strainer.

Features:

• Lead Free Option Available
• Balanced Piston Design
• Sealed Spring Cage Vault
• Built-in Thermal Expansion By-Pass
• Easy Access to Seat Disc and SS Strainer
• Control Pressure Range 10-125 psi
• NPT, Solder, PEX, CPVC connections
• 100% Manufactured in USA

Performance Rating:

• Maximum Supply Pressure: 400 psig
• Std. Temperature Range 33°F – 180°F
• Maximum Set Pressure: 125 psig
