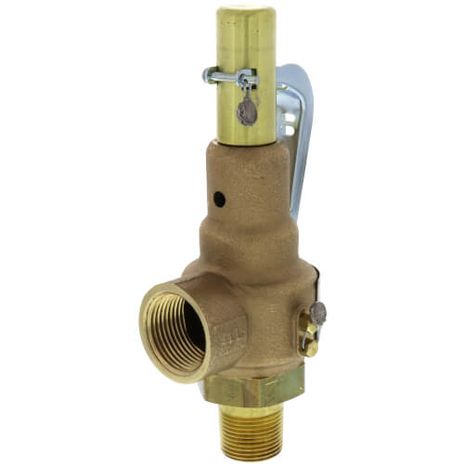

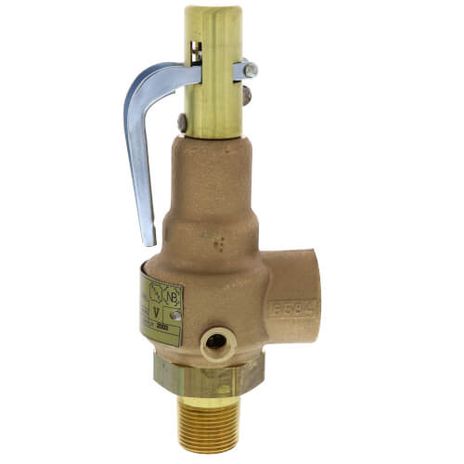

Apollo Valves 19KEDA150

19 Series ¾” MNPT x 1” FNPT 1,656 LBS/HR Safety Relief Valve (150 psi)

BRONZE SAFETY VALVES FOR STEAM, AIR \& GAS SERVICE

National Board capacity certified, high capacity, ideal for use with steam boilers, sterilizers, pressure vessels, compressors, and pressure piping systems.

FEATURES:

• Pressures: 15 through 300 psig steam, air, gas
• Max. temp. 406°F with stainless steel trim
• 13 Sizes, ½” through 2-½” NPT
• Stainless steel springs
• Optional 316 stainless steel wetted trim (Specify 19L or 19S Series)
• Available in metal and soft seat designs
• Metal to metal seat lapped to optical flatness (19M)
• PFA Teflon® soft seat easily replaced (19K)
• Double ring, full bore, high capacity design
• Tapped body drain facilitates piping of condensate away from equipment
• Registered in all Canadian Provinces and Territories, CRN #0G8547.5C
• Wide wrenching hex for easier, faster installations
• Dual ASME/CE European Pressure Equipment Directive Compliant option
• Made in USA
