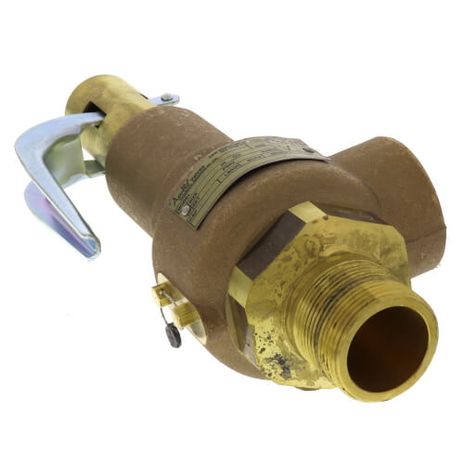

Apollo Valves 19MGFA150
SKU: CS2702267MPN: 19MGFA150UPC/EAN: 670750330476
19 Series 1-¼” MNPT x 1-½” FNPT 4,240 LBS/HR Safety Relief Valve, Brass Trim/Metal Seat (150 psi)
$671.39
Unit3 Units Available at Factory - Ships Same/Next Business Day
Product Details
BRONZE SAFETY VALVES FOR STEAM, AIR \& GAS SERVICE
National Board capacity certified, high capacity, ideal for use with steam boilers, sterilizers, pressure vessels, compressors, and pressure piping systems.
FEATURES:
- Pressures: 15 through 300 psig steam, air, gas
- Max. temp. 406°F with stainless steel trim
- 13 Sizes, ½” through 2-½” NPT
- Stainless steel springs
- Optional 316 stainless steel wetted trim (Specify 19L or 19S Series)
- Available in metal and soft seat designs
- Metal to metal seat lapped to optical flatness (19M)
- PFA Teflon® soft seat easily replaced (19K)
- Double ring, full bore, high capacity design
- Tapped body drain facilitates piping of condensate away from equipment
- Registered in all Canadian Provinces and Territories, CRN #0G8547.5C
- Wide wrenching hex for easier, faster installations
- Dual ASME/CE European Pressure Equipment Directive Compliant option
- Made in USA
Specifications
| SKU | CS2702267 |
|---|---|
| MPN | 19MGFA150 |
| UPC/EAN | 670750330476 |
