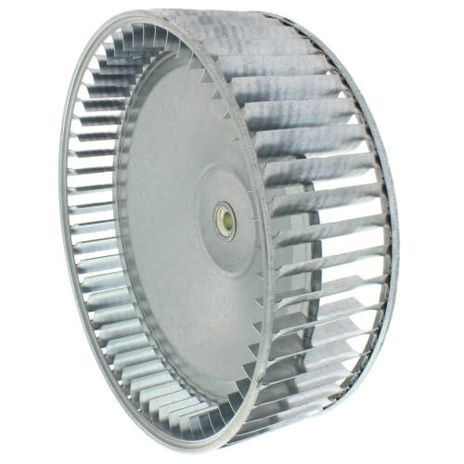

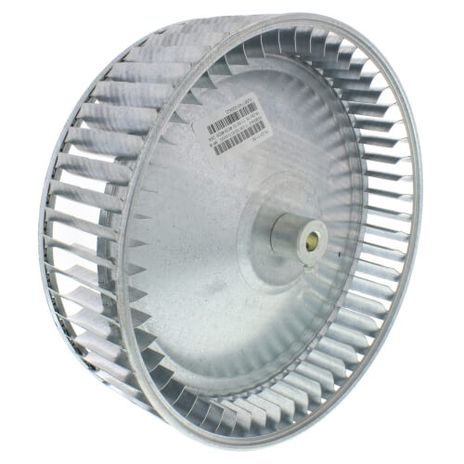

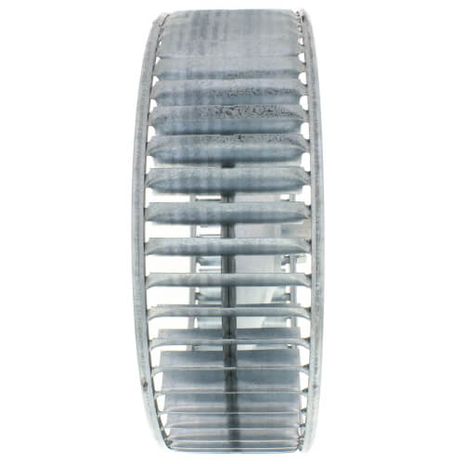

Rheem 70-23111-50

11” x 4” CW Wheel (½” Bore)

11” x 4” CW Wheel (½” Bore)

Features:

• Overall Diameter Dim. D (in.): 11-15/16
• Overall Width Dim. W (in.): 3-13/16
• Nominal Size (in.): 11 x 4
• No.of Blades: 54
• Nominal Hub Bore Shaft Size Dim. E (in.): ½
• No. Set Screws: 1
• Outside Edge of Disc to Outside End of Hub Dim. A (in.): 2
• Hub Length Dim. B (in.): 1-⅛
• Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 1-15/16
• Keyway (in.): None
• Rotation Direction (Facing Hub): CW
• Disc Shape (Hub side): Convex
