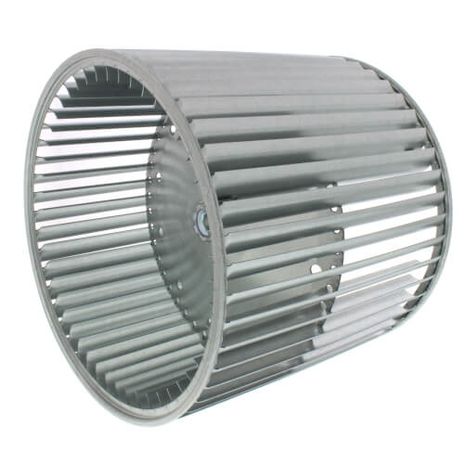

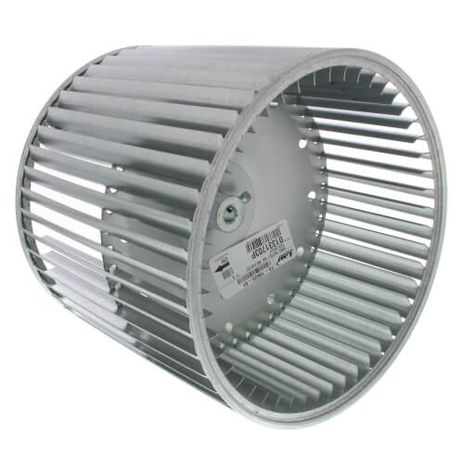

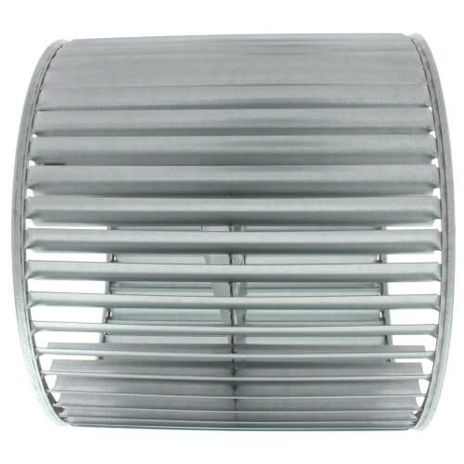

Rheem 70-18625-01

10” x 9” 48-Blade CW Wheel (½” Bore)

10” x 9” 48-Blade CW Wheel (½” Bore)

Features:

• Overall Diameter Dim. D (in.): 10-⅝
• Overall Width Dim. W (in.): 9-½
• Nominal Size (in.): 10 x 9
• No. of Blades: 48
• Nominal Hub Bore Shaft Size Dim. E (in.): ½
• No. Set Screws: 1
• Outside Edge of Disc to Outside End of Hub Dim. A (in.): 1/32
• Hub Length Dim. B (in.): 1-⅛
• Disc Setback - Outside Edge of Disc to End of Wheel Opposite Hub Dim. C (in.): 4-¾
• Keyway (in.): None
• Rotation Direction (Facing Hub): CW
• Disc Shape (Hub side): Concave
