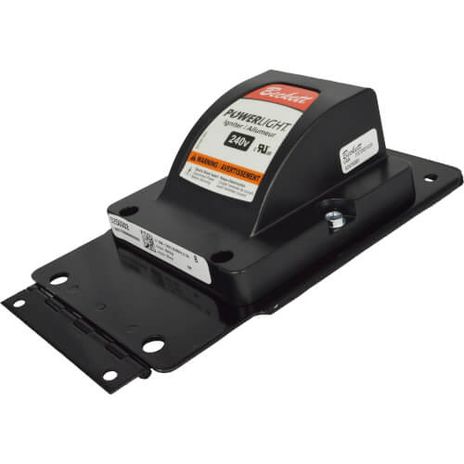

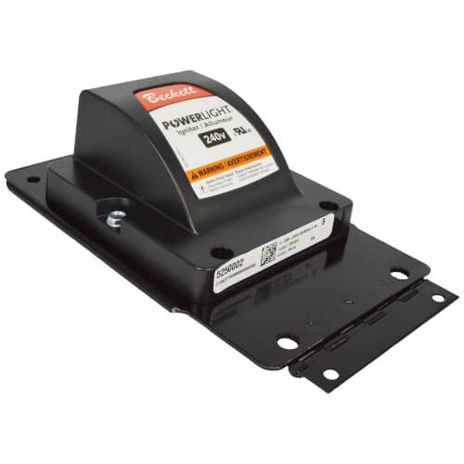

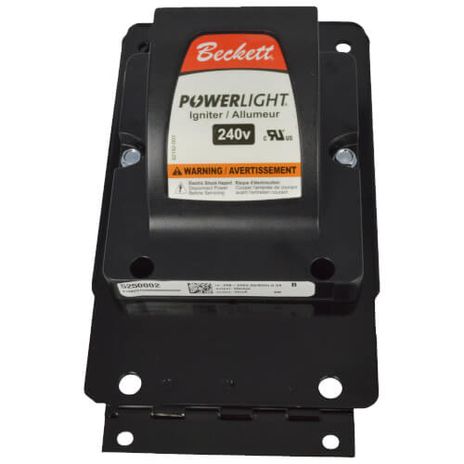

Beckett 5250002U

UNIT PACK 240V IGNITER

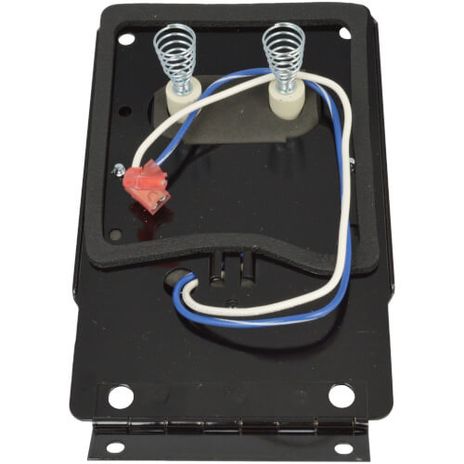

Beckett’s PowerLight® 240 VAC fuel oil Igniters offer improved performance and longer life. This igniter is easy to install and is designed as a universal replacement for Beckett and other manufacturer’s igniters. The PowerLight igniter is available either with or without a factory-installed baseplate.

Product Features

• UL recognized in the US and Canada
• 20kV peak rating guarantees quick and efficient ignition
• A vacuum encapsulation process, using epoxy, provides resistance to moisture, excellent heat dissipation and electrical insulation
• Epoxy potting will not shrink or crack like tar-filled transformers
• Case material is high-temperature thermoplastic that provides high impact strength, scratch resistance, impenetrable to oil and most chemicals
• Small size and weight (less than 1 lbs) — versus an 8 lbs iron core transformer, making shipping and installation easier
• Higher output voltage for more reliable ignition, especially with cold oil
• Adapts to multiple baseplates making it the most versatile unit on the market

Product Specifications

• Input Voltage: 208-240VAC, 50/60Hz, 21.6VA
• Output Voltage: 20kV peak
• Output Current: 25 mA RMS
• Secondary Mid-point Ground
• Ambient Operating Temperature: -40°F (-40°C) to 150°F (66°C)
• Storage Temperature: -40°F (-40°C) to 150°F (66°C)
• Moisture: 5 to 95% Relative Humidity
