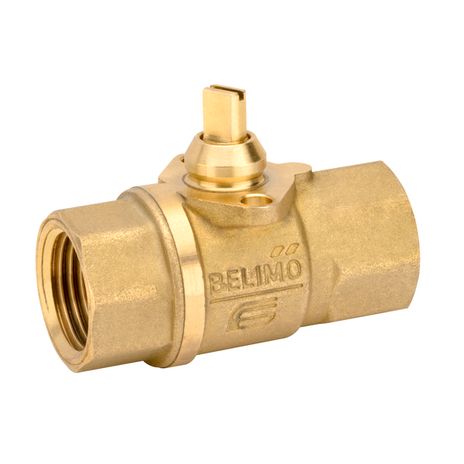

Belimo Z2075Q-K
SKU: CS4063381MPN: Z2075Q-K
ZoneTight (QCV), ¾”, 2-way, Cv 9.8
Product Details
ZoneTight™ (QCV), ¾”, 2-way, Cv 9.8
Attributes
| Valve Size | 0.75” [20] |
| Cv | 9.8 |
| Flow Pattern | 2-way |
| Valve Trim | Chrome plated brass |
| Close-Off Pressure ∆Ps | 75 psi |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | 75° |
| Pipe Connection | NPT female ends |
| Fluid Temp Range (Water) | 36…212°F [2…100°C] |
| Cv Range [Gpm] | 7.6…16 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 6.6…14 m³/h |
| Flow Characteristic | equal percentage |
| Servicing | maintenance-free |
| Valve Body | forged brass |
| Stem | brass |
| Seat | PTFE |
| Body Pressure Rating | 360 psi |
| O-Ring | EPDM (lubricated) |
| Ball | chrome plated brass |
| Maximum Allowable Operating Temperature | 212°F [100°C] * |
Specifications
| SKU | CS4063381 |
|---|---|
| MPN | Z2075Q-K |
You may also like
Belimo Z2075QS-K
$43.77Unit

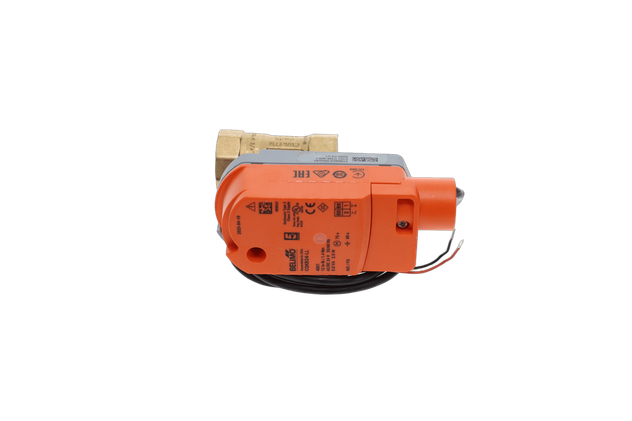

Belimo Z2075Q-K+CQB24-3
