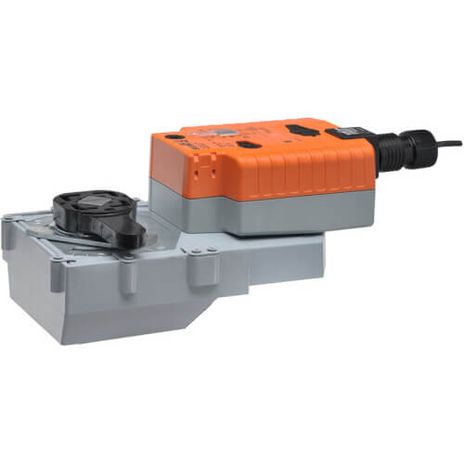

Belimo GKX24-MFT-X1

Configurable, Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Specifications:

• Power Supply: 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
• Power consumption in operation: 12 W
• Power consumption in rest position: 3 W
• Electrical Connection: 18 GA plenum cable with ½” conduit connector, degree of protection NEMA 2 / IP54, 3 ft [1 m] 10 ft [3 m] and 16ft [5 m]
• Angle of rotation: Max. 95°, adjustable with mechanical stop
• Direction of rotation motor: reversible with built-in switch
• Direction of motion fail-safe: reversible with switch
• Manual override: external push button
• Ambient temperature: -22...122°F
• Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
• Noise level, motor: 52 dB(A)
• Noise level, fail-safe: 61 dB(A)
• Maintenance: maintenance-free
• Weight: 4.0 lb
