HVAC/RActuatorsBelimo

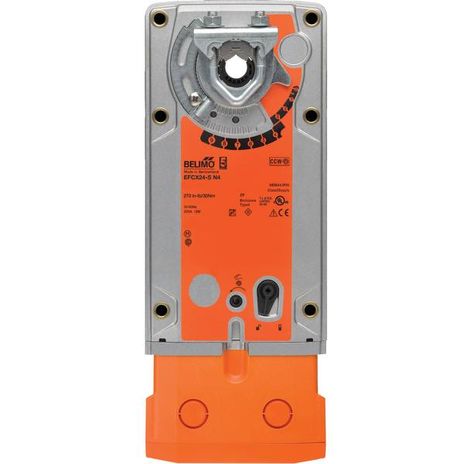

Belimo EFCX24-S N4

SKU: CS3354608MPN: EFCX24-S N4

Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4

Belimo EFCX24-S N4
$1,061.67
Unit
Available on backorder
remove
add

Documents

Product Details

Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4

Attributes

Control On/Off
Auxillary Switch 2 x SPDT
Fail-Safe Spring Return
Torque 270 in-lb
Nominal Voltage AC/DC 24 V
Transformer Sizing 16 VA (class 2 power source)
Enclosure UL Enclosure Type 4
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation 9.5 W
Power Consumption In Rest Position 4.5 W
Electrical Connection Terminal block(s) inside junction box with knockouts
Overload Protection electronic throughout 0…95° rotation
Angle Of Rotation Max. 95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor selectable by ccw/cw mounting
Position Indication Mechanical
Running Time (Motor) 75 s
Running Time Fail-Safe 10 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Degree Of Protection Iec/En IP66
Degree Of Protection Nema/Ul NEMA 4
Connection terminals
Servicing maintenance-free
Housing Material Die cast aluminium and plastic casing
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 56 dB(A)
Torque Motor 270 in-lb [30 Nm]
Electrical Protection actuators are double insulated
Quality Standard ISO 9001
Noise Level, Fail-Safe 71 dB(A)
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU
Shaft Diameter ¾…1.05” round, centers on ¾” with insert, 1.05” without insert
Auxiliary Switch 2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, one set at 10°, one set at 85°
Fail-Safe Function Spring return
Control Type Web On/Off
Fail-Safe YES

Specifications

SKUCS3354608
MPNEFCX24-S N4
