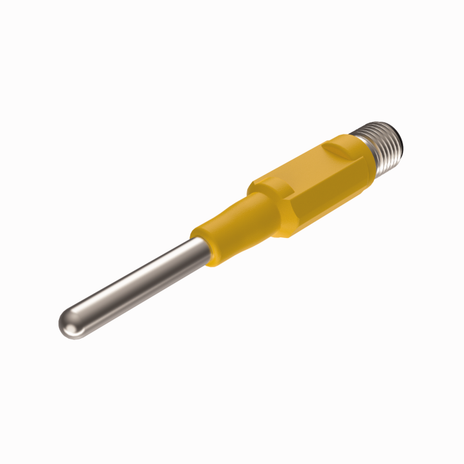

Turck TTM-206A-CF-LIUPN-H1140-L050
SKU: CS3878035MPN: TTM-206A-CF-LIUPN-H1140-L050Alternate Part #: 9910809UPC/EAN: 4047101379105
9910809 - PT100, TRANSMITTER, GEN., GEN.
$275.14
UnitAvailable on backorder
Product Details
Temperature Detection
With Current Output and PNP/NPN Transistor Switching Output
- Miniature design
- Analog output 4…20 mA
- Factory setting: 0…150 °C
- Parameterizable via IO-Link
- Analog output 4…20 mA (2-wire)
- Switching output
- Compression fitting process connection
- Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip)
Attributes
| Ambient Temperature | -40…+80 °C |
| Approvals | CE |
| Communication Protocol | IO-Link |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90251900900.0000 |
| Design | Without display (integrated probe) |
| Detection Type | medium contact |
| Ecl Ss Code V5 1 4 | 27200206 -/- Transducer (temperature) |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | Current output (2-wire), Switching output |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L) |
| Measuring Range | -210…650 °C |
| Operating Voltage | 15…30 VDC |
| Process Connection | For compression fittings, thermowell or direct mounting |
| Protection Class | IP67 |
Specifications
| SKU | CS3878035 |
|---|---|
| MPN | TTM-206A-CF-LIUPN-H1140-L050 |
| Alternate Part # | 9910809 |
| UPC/EAN | 4047101379105 |
