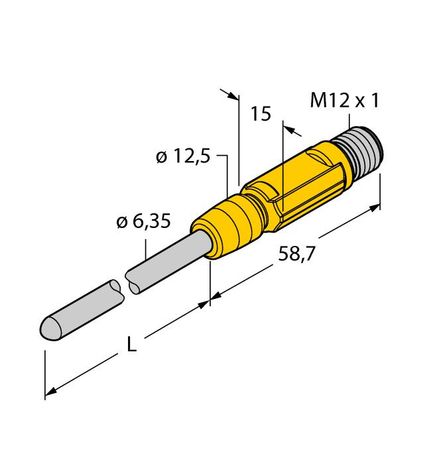

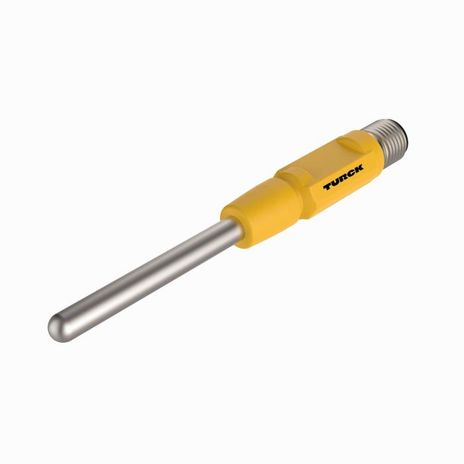

Turck TTM-206.35A-CF-LIUPN-H1140-L100
SKU: CS3878033MPN: TTM-206.35A-CF-LIUPN-H1140-L100Alternate Part #: 9910826UPC/EAN: 4047101418064
9910826 - PT100, TRANSMITTER, GEN., GEN.
$327.46
UnitAvailable on backorder
Product Details
Temperature Detection
With Current Output and PNP/NPN Transistor Switching Output
- Miniature design
- Parameterizable via IO-Link
- Analog output 4…20 mA (2-wire)
- Switching output
- Probe with ¼-inch outer diameter
- Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip)
Attributes
| Ambient Temperature | -40…+80 °C |
| Approvals | CE |
| Communication Protocol | IO-Link |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90251900900.0000 |
| Design | Without display (integrated probe) |
| Detection Type | medium contact |
| Ecl Ss Code V5 1 4 | 27200206 -/- Transducer (temperature) |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | Current output (2-wire), Switching output |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L) |
| Measuring Range | -210…650 °C |
| Operating Voltage | 15…30 VDC |
| Process Connection | For compression fittings, thermowell or direct mounting |
| Protection Class | IP67 |
Specifications
| SKU | CS3878033 |
|---|---|
| MPN | TTM-206.35A-CF-LIUPN-H1140-L100 |
| Alternate Part # | 9910826 |
| UPC/EAN | 4047101418064 |
You may also like
Turck TTMS-203A-CF-LIUPN-H1140-L100
$477.67Unit
Turck TTMS-206A-CF-LIUPN-H1140-L100
$477.67Unit
Turck TTM-203A-CF-LIUPN-H1140-L100
$327.46Unit
Turck TTM-206A-CF-LIUPN-H1140-L100
$327.46UnitTurck TTMS-203A-CF-LIUPN-H1140-L150
$477.67UnitTurck TTM-203A-CF-LIUPN-H1140-L150
$327.46UnitTurck TTM-206A-CF-LIUPN-H1140-L200
$327.46UnitTurck TTMS-206A-CF-LIUPN-H1140-L150
$477.67UnitTurck TTM-206A-CF-LIUPN-H1140-L050
$275.14UnitTurck TTM-206A-CF-LIUPN-H1140-L150
$327.46UnitTurck TTM-206A-CF-LIUPN-H1140-L300
$282.75Unit

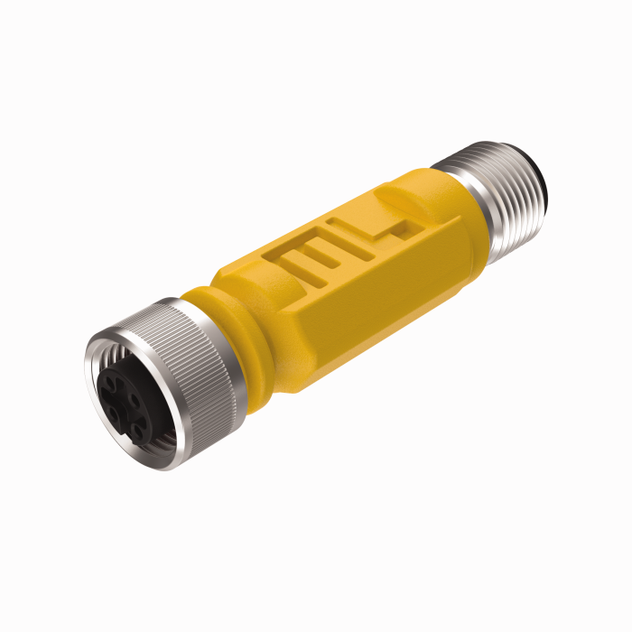

Turck TTM-100-LIUPN-H1140
