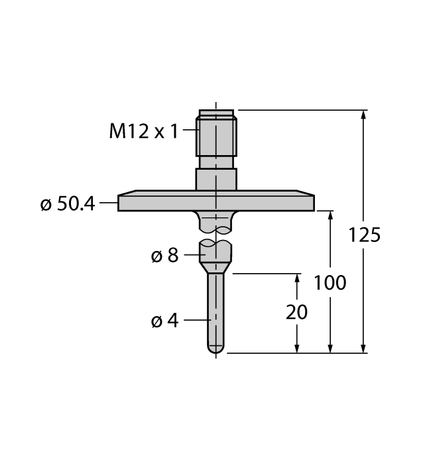

Turck TP-504A-TRI1.5-H1141-L100
SKU: CS3877971MPN: TP-504A-TRI1.5-H1141-L100Alternate Part #: 9910860UPC/EAN: 4047101430752
9910860 - PT100, PROBE, GEN., GEN.
$205.31
UnitAvailable on backorder
Product Details
Temperature Detection
Probe
- Pt 100 probe according to DIN EN 60751
- Resistant to vibrations and shocks
- Connectable to TS, TTM, IM34, BL20, BL67
- Max. temperature connector: 120°C
- Connection mode: 4-wire connection
- Process connection Tri-Clamp 1 ½”
Attributes
| Ambient Temperature | -40…+120 °C |
| Approvals | cULus |
| Customs Tariff Number | 90251900900.0000 |
| Design | Temperature probe |
| Detection Type | medium contact |
| Ecl Ss Code V5 1 4 | 27200208 -/- Temperature measurement electrical complete |
| Electrical Connection | Connector, M12 × 1 |
| Electrical Output | Resistance |
| Housing Material | Stainless steel, 1.4404 (AISI 316L) |
| Measuring Range | -50…120 °C |
| Process Connection | Tri-Clamp 1 ½″ |
| Protection Class | IP67 |
Specifications
| SKU | CS3877971 |
|---|---|
| MPN | TP-504A-TRI1.5-H1141-L100 |
| Alternate Part # | 9910860 |
| UPC/EAN | 4047101430752 |
