Turck TNLR-Q80L400-H1147L
SKU: CS3877923MPN: TNLR-Q80L400-H1147LAlternate Part #: 7030234UPC/EAN: 4047101206937
7030234 - HF
$1,854.33
UnitAvailable on backorder
Product Details

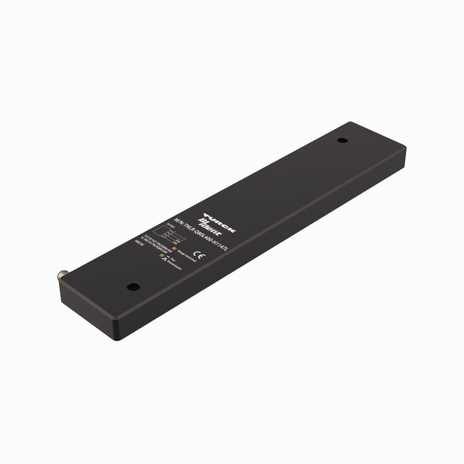

HF Read/Write Head
- For roller conveyors
- The approach direction of the tag can be both, diagonal as well as longitudinal to the read/write head.

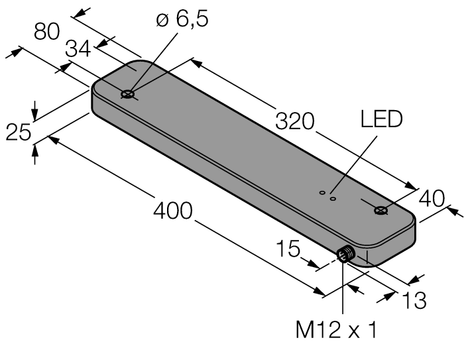

- Rectangular, 80 x 400 mm, height 25 mm
- Active face on top
- Plastic, PBT-GF30-VO
- Powered and operated only via connection to BL ident interface module
- M12 × 1 connector, connection only via BL ident extension cable
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | 400 x 80 x 25 mm, Q80L400 |
| Customs Tariff Number | 84719000000.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27280401 -/- Identification RFID |
| Fieldbus Protocol | Connection to RFID interface |
| Housing Material | Plastic, PBT-GF30-V0, Black |
| Mounting | Non-flush |
| Protection Class | IP67 |
| Radio Communication And Protocol Standards | ISO 15693, NFC Typ 5 |
| Read Write Distance Max | 345 mm |
| Technology | HF RFID |
Specifications
| SKU | CS3877923 |
|---|---|
| MPN | TNLR-Q80L400-H1147L |
| Alternate Part # | 7030234 |
| UPC/EAN | 4047101206937 |
