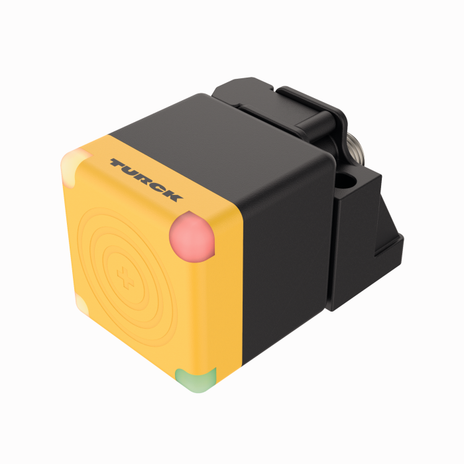

Turck TN-Q40-IOL2-H1141

Name: Turck TN-Q40-IOL2-H1141
Brand: Turck
SKU: CS3877896
Price: 555.56 USD
Availability: OutOfStock

SKU: CS3877896MPN: TN-Q40-IOL2-H1141Alternate Part #: 100012163UPC/EAN: 4047101514209

100012163 - NO DESC

$555.56

Unit

Available on backorder

Quantity

remove

add

Product Details

HF Read/Write Head

IO-Link

Rectangular, height 40 mm
The active face (yellow) can be positioned in five different orientations without the need for tools (quick toggle catch)
Plastic, PBT-GF30-V0

Process value in 32-byte IO-Link telegram
Operation in SIO mode possible
RSSI value output
Alarm outputs, parameterizable (e.g. for RSSI threshold)
Password function for accessing the tag (separate hardware must be used to enable the password function)
Operating hours counter
Male connector, M12 × 1, 4-pin

Ambient Temperature	-25…+80 °C

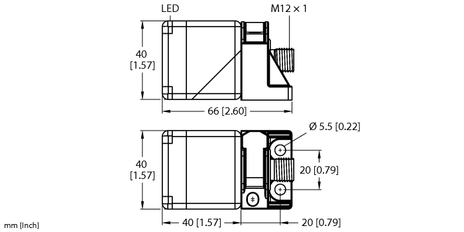

Construction Size	66 x 40 x 40 mm, Q40
Customs Tariff Number	85369095000.0000
Design	Rectangular
Ecl Ss Code V5 1 4	27280401 -/- Identification RFID
Fieldbus Protocol	IO-Link
Housing Material	Plastic, PBT
Mounting	Non-flush
Protection Class	IP68/IP69K
Radio Communication And Protocol Standards	ISO 15693, NFC Typ 5
Technology	HF RFID
