Turck TBEN-L4-SE-M2

SKU: CS3877219MPN: TBEN-L4-SE-M2Alternate Part #: 100004426UPC/EAN: 4047101499384

100004426 - MANAGED, ON MACHINE (IP67)

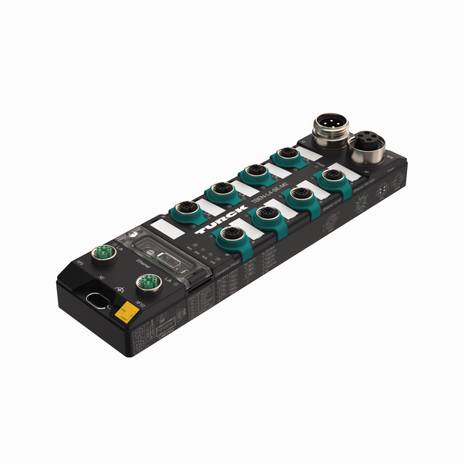

Turck TBEN-L4-SE-M2
Turck TBEN-L4-SE-M2
Turck TBEN-L4-SE-M2
Turck TBEN-L4-SE-M2
$1,667.00
Unit
Available on backorder
remove
add

Product Details

Managed Ethernet Switch

8 × 100-Mbit Ports, 2 × 1-Gbit Ports

  • 2 × M12, 8-pin, X-coded, 1 Gbps high-speed backbone
  • 8 × M12, 4-pin, D-coded, 100 Mbps
  • Glass fiber reinforced housing
  • Shock and vibration tested
  • Fully potted module electronics
  • Protection classes IP65, IP67, IP69K
  • ⅞” males, 4-pin, for power supply
  • Separated power groups for safety shutdown
  • ATEX Zone 2/22
  • Web-based management
  • Firewall
  • Configurable LAN/WAN zones
  • NAT routing
  • VLAN according to IEEE 802.1q
  • Prioritization according to IEEE 802.1p
  • DHCP server/client
  • Port-based IP address assignment
  • IGMP (snooping/querier)
  • Media redundancy RSTP
  • HTTP, HTTPS, LLDP, NTP, SNMP V1–V3
  • Port mirroring

Attributes

Ambient Temperature -40…+70 °C
Approvals ATEX Zone 2/22, cULus
Connection Technology Ethernet 2 × M12, 8-pin, X-coded, 8 × M12, 4-pin, D-coded
Customs Tariff Number 85176200000.0000
Device Type Ethernet switch
Ecl Ss Code V5 1 4 27250302 -/- Digital I/O module (periphery)
Number Of Ethernet Ports 10 ports
Protection Class IP65/IP67/IP69K
Transmission Rate Ethernet 10/100/1000 Mbps

Specifications

SKUCS3877219
MPNTBEN-L4-SE-M2
Alternate Part #100004426
UPC/EAN4047101499384
