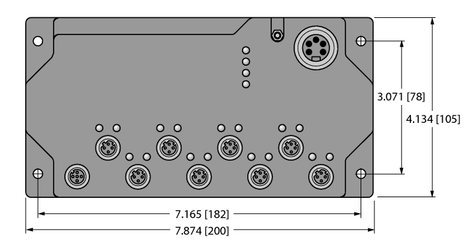

Turck SE-44M-E924

SKU: CS3876576MPN: SE-44M-E924Alternate Part #: U3-00775

U3-00775 - MANAGED, ON MACHINE (IP67)

Turck SE-44M-E924
$1,666.78
Unit
Available on backorder
remove
add

Product Details

Industrial Ethernet

Managed Switch

  • 10/100 Mbps
  • Auto-sensing, 10/100M, half/full duplex, auto-negotiating
  • Auto cross-over, auto-polarity
  • Automatic address learning, aging and migration
  • Store and forward wire-speed switching
  • IEEE 802.3, 802.3u, 802.3x, 802.3D/w, 802.3p, 802.3Q
  • Real-Time-Ring™ or Rapid Spanning Tree (RSTP)
  • SNMPv1 and v2 network management
  • SNMPv3 authentication \& encryption for security
  • SNMP notifications
  • IGMP for multicast filtering (snooping and querying)
  • Broadcast and multicast storm protection
  • RMON and port mirroring
  • Security with HTTPS, SSL, SSH, SNMPv3
  • Easy configuration via web
  • 8 ports + 1 RS232 configuration port
  • Ethernet connection: 4-pole, M12 D-coded
  • Power supply: 5-pole, ⅞”
  • Protection class: IP67

Attributes

Ambient Temperature -40…+75 °C
Connection Technology Ethernet 8 × M12, 4-pin, D-coded
Customs Tariff Number 85176200000.0000
Device Type Ethernet switch
Ecl Ss Code V5 1 4 19170130 -/- Netzwerk-Switch (allgemeine Anwendung)
Fieldbus Connection Technology M12 × 1 female connector, 4-pin, D-coded
Number Of Ethernet Ports 8 ports (managed) + 1 RS232 config. port
Protection Class IP67
Transmission Rate Ethernet 10/100 Mbps

Specifications

SKUCS3876576
MPNSE-44M-E924
Alternate Part #U3-00775
