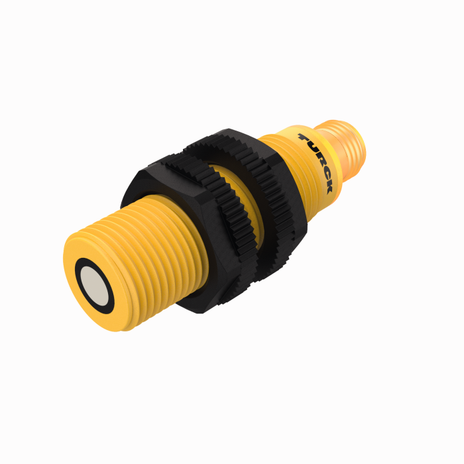

Turck RU50U-S18-AN8X-H1141
SKU: CS3875311MPN: RU50U-S18-AN8X-H1141Alternate Part #: 100000983UPC/EAN: 4047101446265
100000983 - DIF., BARREL, DC, CON. M12
Contact us for pricing and availability
Product Details
Ultrasonic Sensor
Diffuse Mode Sensor
- Smooth sonic transducer face
- Cylindrical housing S18, potted
- Connection via M12 × 1 male connector
- Teach range adjustable via adapter
- Temperature compensation
- Blind zone: 5 cm
- Range: 50 cm
- Aperture angle of sonic cone: ±20 °
- NPN switching output, NO contact
- Switching range adjustable
Attributes
| Ambient Temperature | -20…+50 °C |
| Approvals | CE, cULus |

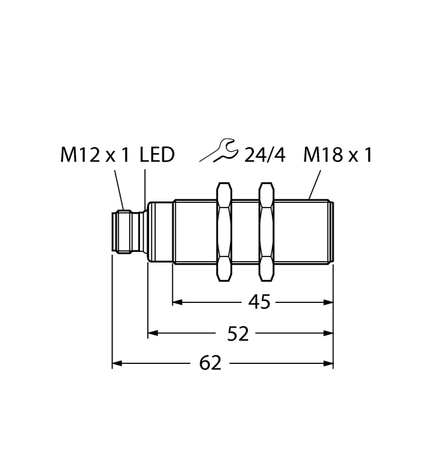

| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27272803 -/- Ultrasonic proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Function | Proximity |
| Housing Material | Plastic, LCP, Yellow |
| Operating Mode | Time of Flight |
| Operating Voltage | 15…30 VDC |
| Output Function | NPN |
| Protection Class | IP67 |
| Radiation Direction | straight |
| Range | 50…500 mm |
| Resolution | 0.2 mm |
| Special Feature | Compact |
| Switching Element Function | NO contact |
Specifications
| SKU | CS3875311 |
|---|---|
| MPN | RU50U-S18-AN8X-H1141 |
| Alternate Part # | 100000983 |
| UPC/EAN | 4047101446265 |
