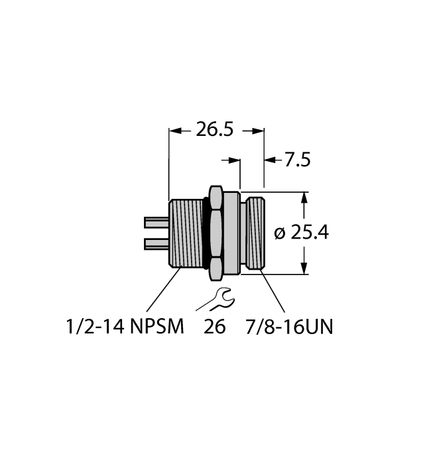

Turck RSFV 49
SKU: CS3862173MPN: RSFV 49Alternate Part #: U3-00703
U3-00703 - RECEPT,⅞IN.MINIFAST
$29.56
UnitAvailable on backorder
Product Details
FOUNDATION™ fieldbus Receptacle
Front Mount
- Male ⅞″ minifast Receptacle
- ½″-14 NPSM screw-in thread
- Stainless steel flange housing
- 4-pin, solderable
- For use in FOUNDATION fieldbus applications
Attributes
| Application | Data |
| Approvals | FM Div.2, CSA Div. 2, CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238 |
| Connector A | Male, ⅞″-16 UN |
| Current | 9 A |
| Customs Tariff Number | 85444290900.0000 |
| Design | Single-ended |
| Ecl Ss Code V5 1 4 | 27250314 -/- Connection technology |
| Fieldbus Protocol | FOUNDATION fieldbus |
| Housing Material Finish | Stainless Steel, 1.4401 (AISI 316), Passivated |
| Mounting Orientation | Front mount |
| Mounting Thread | ½″-14 NPSM |
| Number Of Contacts | 4 |
| Protection Class When Coupled | IP67 |
| Voltage | 600 V |
Specifications
| SKU | CS3862173 |
|---|---|
| MPN | RSFV 49 |
| Alternate Part # | U3-00703 |
You may also like

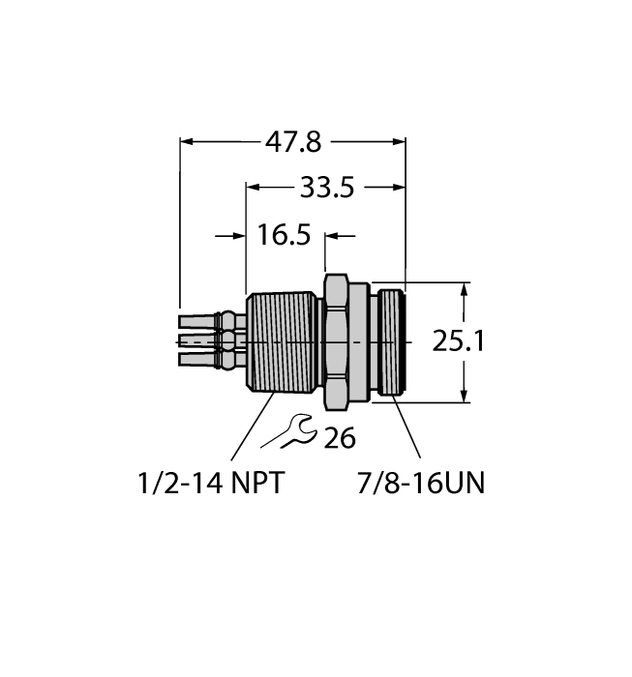

Turck RSFV 48
$29.56UnitTurck RSFV RKFV 49/22
$92.89UnitTurck RSFV 57
$24.90Unit
Turck RSF RKF 49/22
$55.94Unit

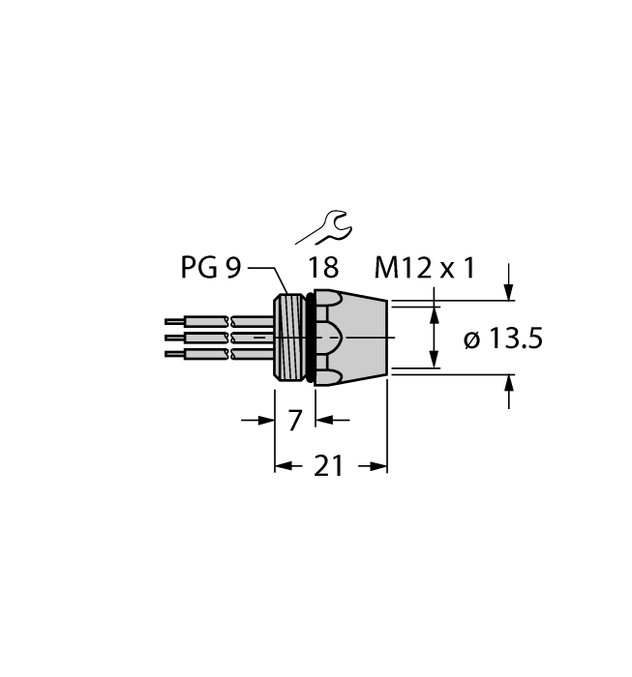

Turck FKV 49
$30.61UnitTurck RSFV RKFV 60/22
$72.10Unit
Turck RSFV 46-0.3M/14.75/NPT
$40.86UnitTurck RSFV RKFV 44/22
$88.11Unit
Turck RSF 57-0.3M/M20 W/LN
$43.67UnitTurck RSFV RKFV 57/22
$65.78Unit

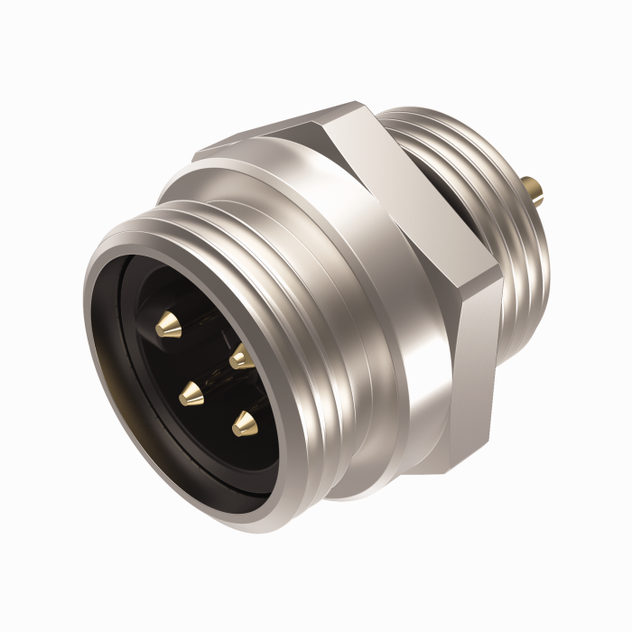

Turck RSFL 46
