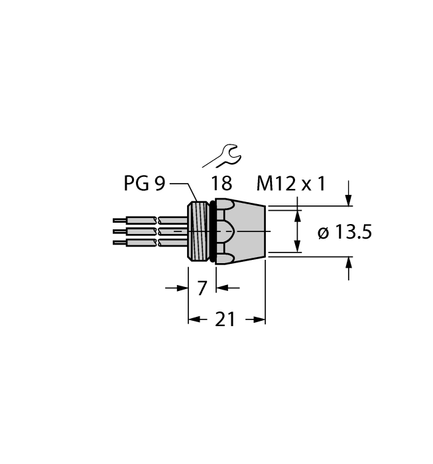

Turck FKV 49
SKU: CS3804401MPN: FKV 49Alternate Part #: U7324
U7324 - RECEPT,M12EUROFAST
$30.61
UnitAvailable on backorder
Product Details
FOUNDATION™ fieldbus Receptacle
Front Mount
- Female M12 eurofast Receptacle
- PG9 screw-in thread
- Stainless steel flange housing
- 4-pin, solderable
- For use in FOUNDATION fieldbus and PROFIBUS-PA applications
Attributes
| Application | Data |
| Approvals | CE |
| Connector A | Female, M12 × 1, A-code |
| Current | 4 A |
| Customs Tariff Number | 85444290900.0000 |
| Design | Single-ended |
| Ecl Ss Code V5 1 4 | 27250314 -/- Connection technology |
| Fieldbus Protocol | FOUNDATION fieldbus |
| Housing Material Finish | Stainless Steel, 1.4401 (AISI 316), Passivated |
| Mounting Orientation | Front mount |
| Mounting Thread | PG9 |
| Number Of Contacts | 4 |
| Protection Class When Coupled | IP68 |
| Voltage | 250 V |
Specifications
| SKU | CS3804401 |
|---|---|
| MPN | FKV 49 |
| Alternate Part # | U7324 |
