Turck RSF 57
SKU: CS3861373MPN: RSF 57Alternate Part #: U5220-0
U5220-0 - RECEPT,⅞IN.MINIFAST
$15.11
UnitAvailable on backorder
Product Details

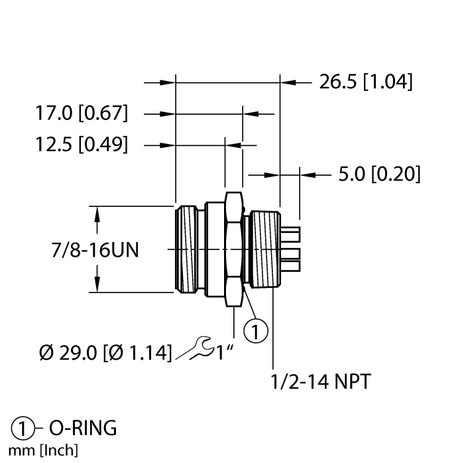

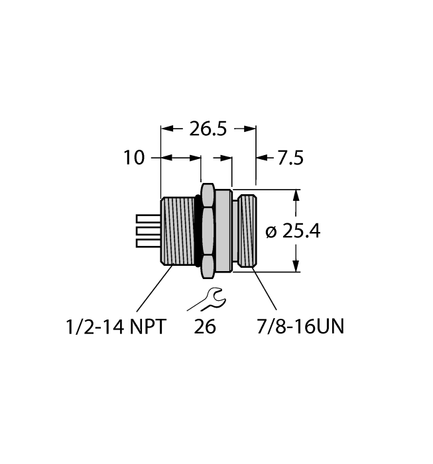

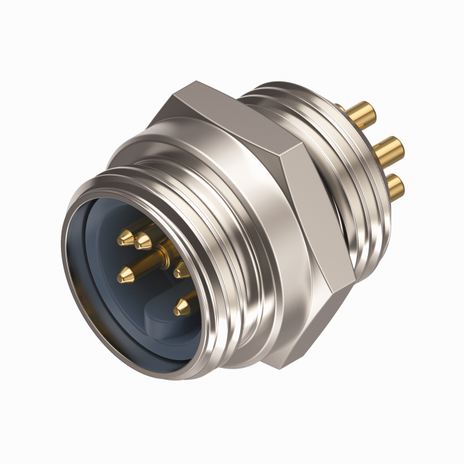

DeviceNet™ Receptacle
Front Mount
- ⅞″ minifast, Male, Receptacle, 5 pin
- Mounting thread: ½″-14 NPT
Attributes
| Application | Data |
| Approvals | CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238 |
| Connector A | Male, ⅞″-16 UN |
| Current | 9 A |
| Customs Tariff Number | 85366990990.0000 |
| Design | Single-ended |
| Fieldbus Protocol | DeviceNet |
| Housing Material Finish | Brass, CuZn, Nickel-plated |
| Mounting Orientation | Front mount |
| Mounting Thread | ½″-14 NPSM |
| Number Of Contacts | 5 |
| Protection Class When Coupled | IP67, IP68, IP69, IP69K |
| Voltage | 300 V |
Specifications
| SKU | CS3861373 |
|---|---|
| MPN | RSF 57 |
| Alternate Part # | U5220-0 |
