Turck RM-105S10C-9D32B-B1M12
SKU: CS3854447MPN: RM-105S10C-9D32B-B1M12Alternate Part #: 1545894
1545894 - MULTITURN
$1,685.39
UnitAvailable on backorder
Product Details

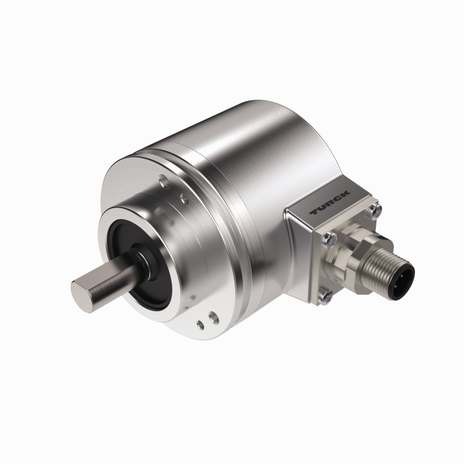

Absolute Rotary Encoder - Multiturn
Industrial Line
- Absolute Shaft Encoder
- Protection class IP67 on the shaft side
- ‐40…+80°C
- max. 5000 rev/min
- CANopen
- M12 x 1 connector
Attributes
| Ambient Temperature | -40…+80 °C |
| Communication Protocol | CANopen |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Connector, M12 × 1 |
| Encoder Line | Industrial-Line |
| Flange Diameter | Ø 58 mm |
| Flange Type | Clamping flange |
| Housing Material | Die-cast zinc |
| Operating Voltage | 10…30 VDC |
| Output Type | Absolute multiturn |
| Protection Class | IP67 |
| Protection Class Shaft | IP67 |
| Shaft Diameter D Mm | 10 mm |
| Shaft Type | Solid shaft |
| Technology | Optical |
Specifications
| SKU | CS3854447 |
|---|---|
| MPN | RM-105S10C-9D32B-B1M12 |
| Alternate Part # | 1545894 |
