Turck RI360P2-QR14-ESG25X2
SKU: CS3832879MPN: RI360P2-QR14-ESG25X2Alternate Part #: 1590827
1590827 - SINGLETURN
Contact us for pricing and availability
Product Details
Inductive Angle Sensor
Premium Line
- Rectangular, plastic
- Many mounting possibilities
- P2-Ri-QR14 included in delivery
- Measuring range displayed via LED
- Immune to electromagnetic interference
- Resolution, 16-bit
- 15…30 VDC
- Cable connection, 8-pin
- SSI output
- 25 bit, Gray-coded
- 62.5 kHz … 1 MHz
Attributes
| Ambient Temperature | -25…+70 °C |
| Communication Protocol | SSi |

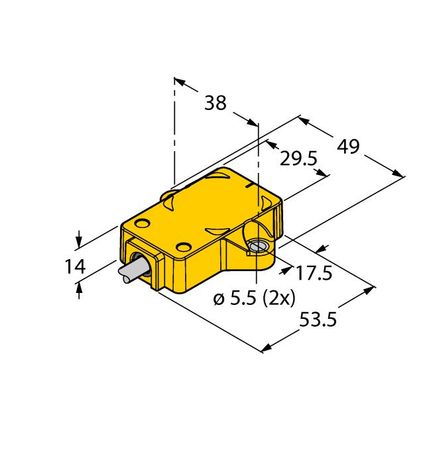

| Construction Size | 53.5 x 49 x 14 mm |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Cable |
| Encoder Line | Premium-Line |
| Flange Type | Flange without mounting element |
| Housing Material | Plastic, PBT-GF30-V0 |
| Measuring Range | 0…360° |
| Operating Voltage | 15…30 VDC |
| Output Type | Absolute singleturn |
| Protection Class | IP68/IP69K |
| Shaft Diameter D Mm | 6 mm6.35 mm |
| Shaft Type | Blind hole shaft |
| Technology | Contactless |
Specifications
| SKU | CS3832879 |
|---|---|
| MPN | RI360P2-QR14-ESG25X2 |
| Alternate Part # | 1590827 |
