Turck RI180P1-QR14-LIU5X2
SKU: CS3832813MPN: RI180P1-QR14-LIU5X2Alternate Part #: 1590829UPC/EAN: 4047101263053
1590829 - SINGLETURN
$286.01
UnitAvailable on backorder
Product Details
Inductive Angle Sensor
With Analog Output
Premium Line
- Rectangular, plastic
- Many mounting possibilities
- P1-Ri-QR14 included in delivery
- Measuring range displayed via LED
- Immune to electromagnetic interference
- Resolution, 12-bit
- 4‐wire, 15…30 VDC
- Analog output
- 0…10 V and 4…20 mA
- Cable connection
Attributes
| Ambient Temperature | -25…+70 °C |

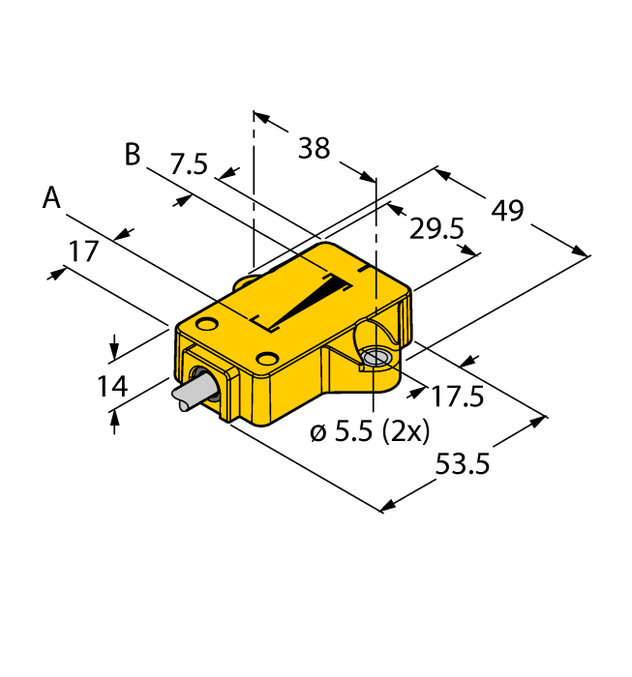

| Construction Size | 53.5 x 49 x 14 mm |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27270501 -/- Encoder, absolute |
| Electrical Connection | Cable |
| Encoder Line | Premium-Line |
| Flange Type | Flange without mounting element |
| Housing Material | Plastic, PBT-GF30-V0 |
| Measuring Range | 0…180° |
| Operating Voltage | 15…30 VDC |
| Output Function | Analog output |
| Output Type | Absolute singleturn |
| Protection Class | IP68/IP69K |
| Shaft Diameter D Mm | 6 mm6.35 mm |
| Shaft Type | Blind hole shaft |
| Technology | Contactless |
| Voltage Output | 0…10 V |
Specifications
| SKU | CS3832813 |
|---|---|
| MPN | RI180P1-QR14-LIU5X2 |
| Alternate Part # | 1590829 |
| UPC/EAN | 4047101263053 |
