All ProductsTurck

Turck RI-10TA1Z2-4A2048-C1M

SKU: CS3832499MPN: RI-10TA1Z2-4A2048-C1MAlternate Part #: 1545430

1545430 - INCREMENTAL

Turck RI-10TA1Z2-4A2048-C1M
$543.75
Unit
Available on backorder
remove
add

Product Details

Incremental Encoder

Industrial Line

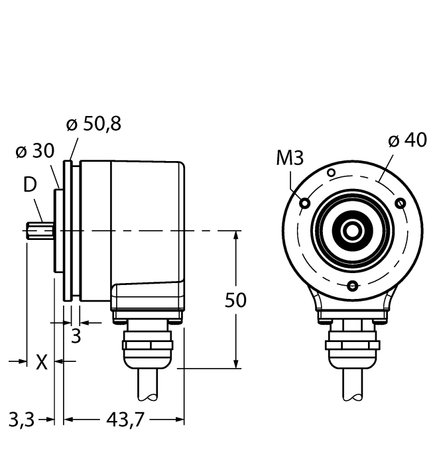

  • Servo flange, Ø 50.8mm
  • Solid shaft, Ø ⅜” x ⅝”
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP65 on shaft side
  • -40…+85 °C
  • Max. 12000 rpm (continuous operation 6000)
  • 5 VDC
  • Cable connection, 8-pole
  • RS422 with inverted signals
  • Pulse frequency max. 300 kHz
  • 2048 pulses per revolution

Attributes

Ambient Temperature -40…+85 °C
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Cable
Encoder Line Industrial-Line
Flange Diameter Ø  50.8 mm
Flange Type Synchro flange
Housing Material Die-cast zinc
Output Function RS422/TTL, with inverted signals
Output Type Incremental
Protection Class IP67
Protection Class Shaft IP65
Resolution Incremental 2048  ppr
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS3832499
MPNRI-10TA1Z2-4A2048-C1M
Alternate Part #1545430
