Turck REI-E-113T8C-2B360-H1181

SKU: CS3832151MPN: REI-E-113T8C-2B360-H1181Alternate Part #: 100011537UPC/EAN: 4047101546866

100011537 - INCREMENTAL

Turck REI-E-113T10C-2B1024-H1181, REI-E-113T12C-2B1024-H1181, REI-E-113T12C-2B2500-H1181, REI-E-113T12C-2B360-H1181, REI-E-113T8C-2B360-H1181
Turck REI-E-113T10C-2B1024-H1181, REI-E-113T12C-2B1024-H1181, REI-E-113T12C-2B2500-H1181, REI-E-113T12C-2B360-H1181, REI-E-113T8C-2B360-H1181, RI-10S10C-2B1024-H1181, RI-10S10C-4B1000-H1181, RI-10S10C-4B2500-H1481, RI-10S6C-2B36-H1181, RI-10T10C-2B250-H1181, RI-10TA1C-2K2048-H1181, RI-10TA1C-2K5000-H1181, RI-10TA1C-4A4000-H1181
Turck REI-E-113T10C-2B1024-H1181, REI-E-113T12C-2B1024-H1181, REI-E-113T12C-2B2500-H1181, REI-E-113T12C-2B360-H1181, REI-E-113T8C-2B360-H1181
Turck REI-E-113T10C-2B1024-H1181, REI-E-113T12C-2B1024-H1181, REI-E-113T12C-2B2500-H1181, REI-E-113T12C-2B360-H1181, REI-E-113T8C-2B360-H1181, RI-10S10C-2B1024-H1181, RI-10S10C-4B1000-H1181, RI-10S10C-4B2500-H1481, RI-10S6C-2B36-H1181, RI-10T10C-2B250-H1181, RI-10TA1C-2K2048-H1181, RI-10TA1C-2K5000-H1181, RI-10TA1C-4A4000-H1181
Contact us for pricing and availability

Product Details

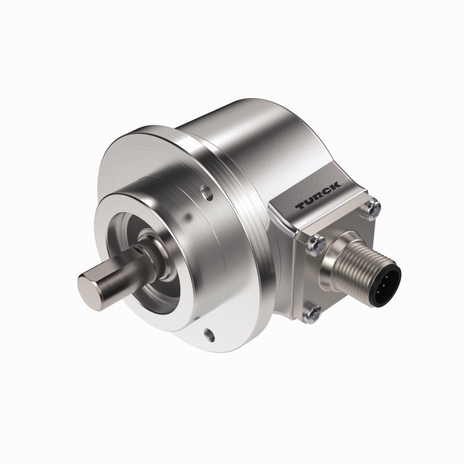

Incremental Encoder

Efficiency Line

  • Clamping flange, Ø 58 mm
  • Solid shaft, Ø 8 mm × 15 mm
  • Optical measuring principle
  • Shaft material: stainless steel
  • Protection class IP64 on housing and shaft side
  • ‐20…+70 °C
  • Max. 4500 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • Male connector, M12 x 1 , 8-pole
  • Push-pull, with inverted signals
  • Pulse frequency max. 300 kHz
  • 360 pulses per revolution

Attributes

Ambient Temperature -20…+70 °C
Customs Tariff Number 90318080000.0000
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Connector, M12 × 1
Encoder Line Efficiency-Line
Flange Diameter Ø  58 mm
Flange Type Clamping flange
Housing Material Die-cast zinc
Operating Voltage 10…30 VDC
Output Function Push-Pull/HTL, with inverted signals
Output Type Incremental
Protection Class IP64
Protection Class Shaft IP64
Resolution Incremental 360  ppr
Shaft Diameter D Mm 8 mm
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS3832151
MPNREI-E-113T8C-2B360-H1181
Alternate Part #100011537
UPC/EAN4047101546866
