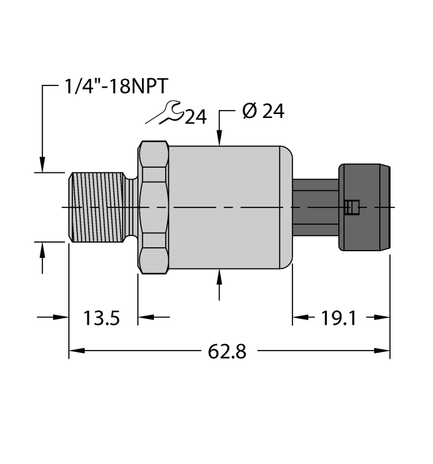

Turck PT10V-1103-I2-MP11
SKU: CS3831503MPN: PT10V-1103-I2-MP11Alternate Part #: 100025782UPC/EAN: 4047101535761
100025782 - CER (ABS) , TRANSM, GEN., GE
$235.26
UnitAvailable on backorder
Product Details
Pressure Transmitter
With Current Output (2-Wire)
- For mobile hydraulic applications
- Ceramic measuring cell
- Compact and robust design
- Excellent EMC properties
- Excellent accuracy and long-term stability
- Complies with ISO 16750-2
- Pressure range -1…10 bar rel.
- 7.5…33 VDC
- Analog output 4…20 mA
- Process connection ¼”-18 NPT male thread
- Plug-in device, Metri Pack 150 P2S series
Attributes
| Ambient Temperature | -40…+100 °C |
| Current Output | 4…20 mA |
| Customs Tariff Number | 90262020000.0000 |
| Design | Without display |
| Ecl Ss Code V5 1 4 | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Electrical Connection | Connector, Metri Pack 150 P2S series |
| Electrical Output | Current output (2-wire) |
| Housing Material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Medium Temperature | -40…+125 °C |
| Operating Voltage | 7.5…33 VDC |
| Pressure Range Bar | -1…10 bar |
| Pressure Range Psi | -14.5…145.04 psi |
| Pressure Transducer Material | Ceramic Al₂O₃ |
| Pressure Type | Relative pressure |
| Process Connection | ¼″ NPT-18 male thread |
| Protection Class | IP67 |
Specifications
| SKU | CS3831503 |
|---|---|
| MPN | PT10V-1103-I2-MP11 |
| Alternate Part # | 100025782 |
| UPC/EAN | 4047101535761 |
