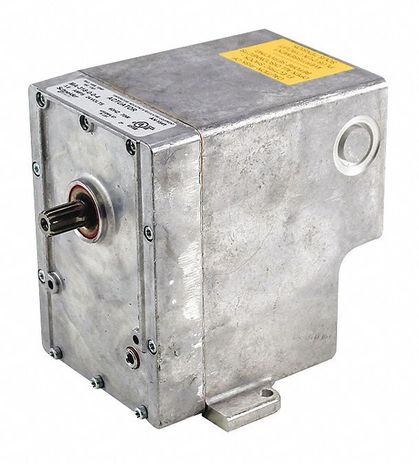

Schneider Electric MA-318
SKU: CS300836MPN: MA-318UPC/EAN: 711426310054
Act (MA-318): Elec, 2Pos, SR, 24 VAC, TB, 60 in-lb, Rotary, N1, Erie
$965.79
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Actuator: (MA-318):
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: Terminal Block
- Torque: 60 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Gear Train
- Product Series: MAx-3xx
- Actuator Use: Dampers, Globe Valves
Attributes
| Us Rated Supply Voltage | 24 V AC |
| Actuator | rotary |
| Actuator Rotation | 180 ° |
| Ambient Air Temperature For Operation | -40-57.7 °C |
| Ambient Air Temperature For Storage | -40-57.7 °C |
| Control Type | manual override with 5/32 allen wrench |
| Electrical Insulation Class | class II |
| Ip Degree Of Protection | IP10 |
| Material | die cast aluminium: housing |
| Motor Type | oil immersed motor |
| Power Consumption In Va | 92 VA AC |
| Product Destination | dampers globe valve |
| Product Or Component Type | actuator |
| Relative Humidity | 5-95 % non-condensing |
| Switch Function | No |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54012_XXX |
| Tightening Torque | 60 lb.in# #7 N.m |
Specifications
| SKU | CS300836 |
|---|---|
| MPN | MA-318 |
| UPC/EAN | 711426310054 |
