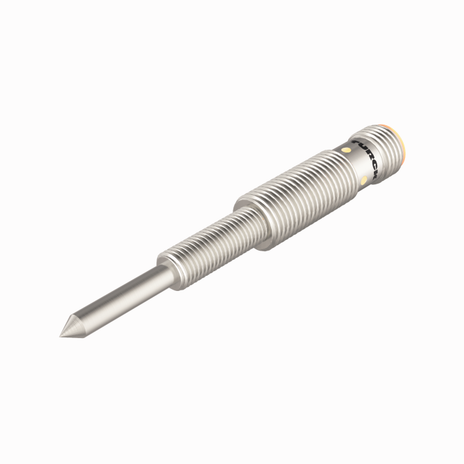

Turck NIMFE-M12/4.6L88-UN6X-H1141
SKU: CS3814697MPN: NIMFE-M12/4.6L88-UN6X-H1141Alternate Part #: 1600610UPC/EAN: 4047101209723
1600610 - WELDNUT, BARREL, DC, CON. M12
$430.01
Unit2 Units Available at Factory - Ships Same/Next Business Day
Product Details
Magnetic Field Sensor
For Detection of Ferromagnetic Parts
- Threaded barrel, M12/M8
- Chrome-plated brass
- DC 3- wire, 10…30 VDC
- Programmable (NC/NO) with teach adapter VB2‐SP1
- M12 x 1 connector
Attributes
| Ambient Temperature | -25…+70 °C |

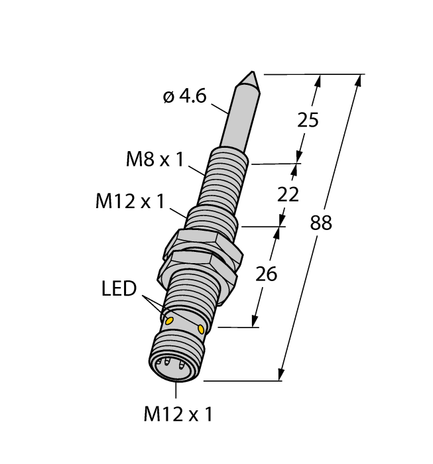

| Construction Size | M12 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, Chrome-plated |
| Operating Voltage | 10…30 VDC |
| Output Function | Connection programmable, NPN |
| Protection Class | IP67 |
| Special Feature | Weld nut sensor |
Specifications
| SKU | CS3814697 |
|---|---|
| MPN | NIMFE-M12/4.6L88-UN6X-H1141 |
| Alternate Part # | 1600610 |
| UPC/EAN | 4047101209723 |
